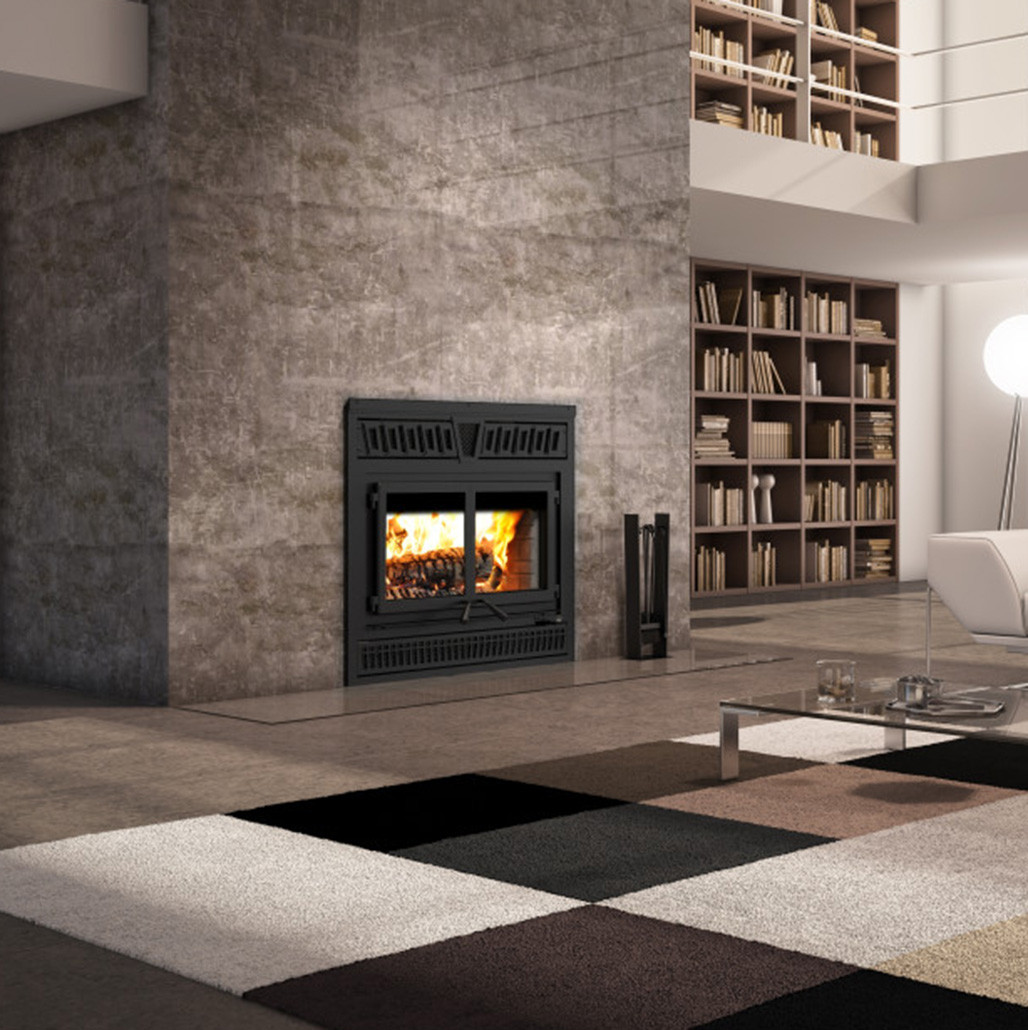

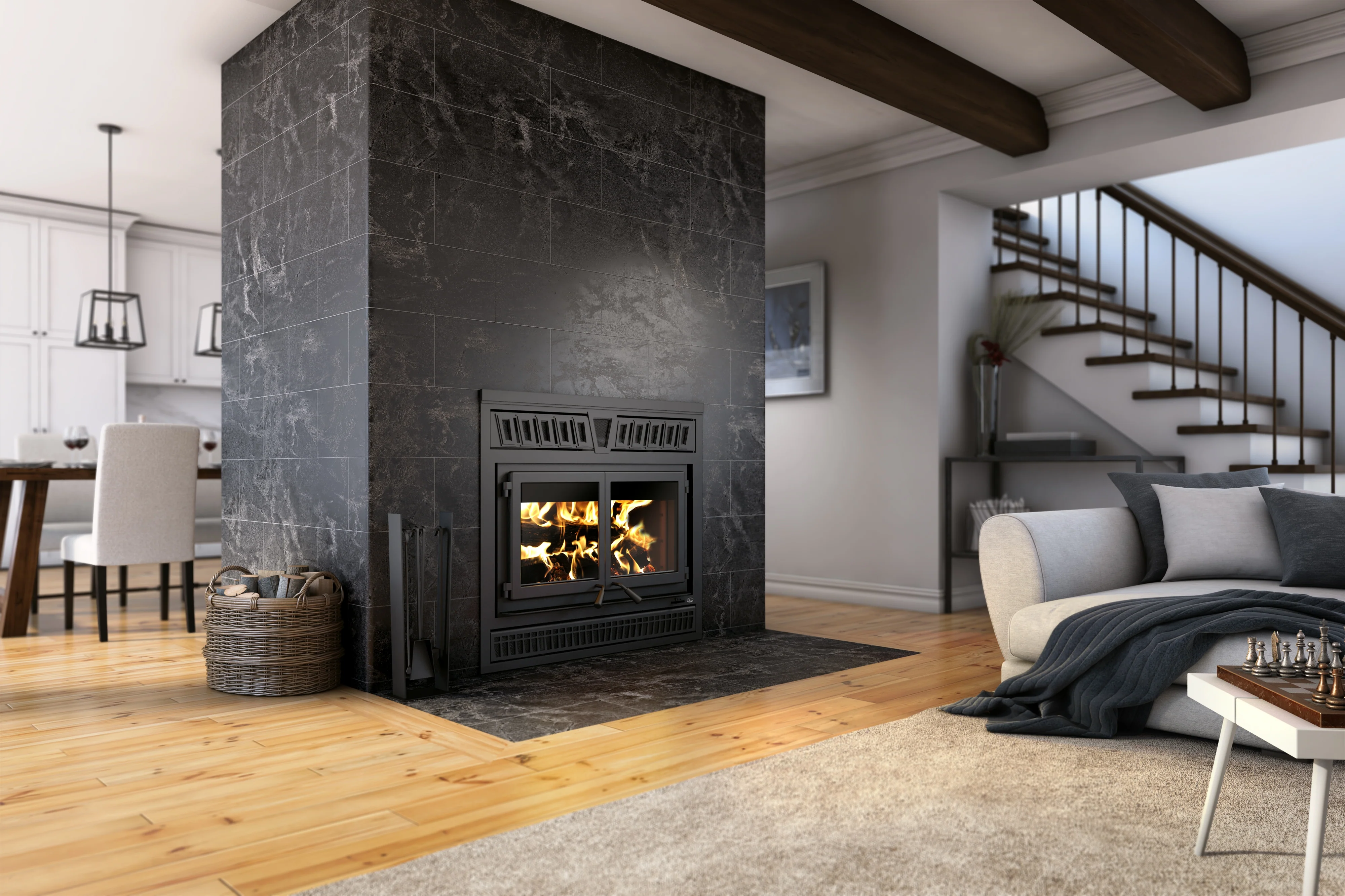

Valcourt Waterloo Wood Fireplace With Double Door - Indoor Wood Burning Stove
High-Efficiency with 95,000 BTU/h (27.8 kW) Modern Built-In Fireplace, 1,000 - 2,800 Heating Area and up to 11 hour burn time - Best Fireplace for Home
FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE
WATERLOO WOOD STOVE

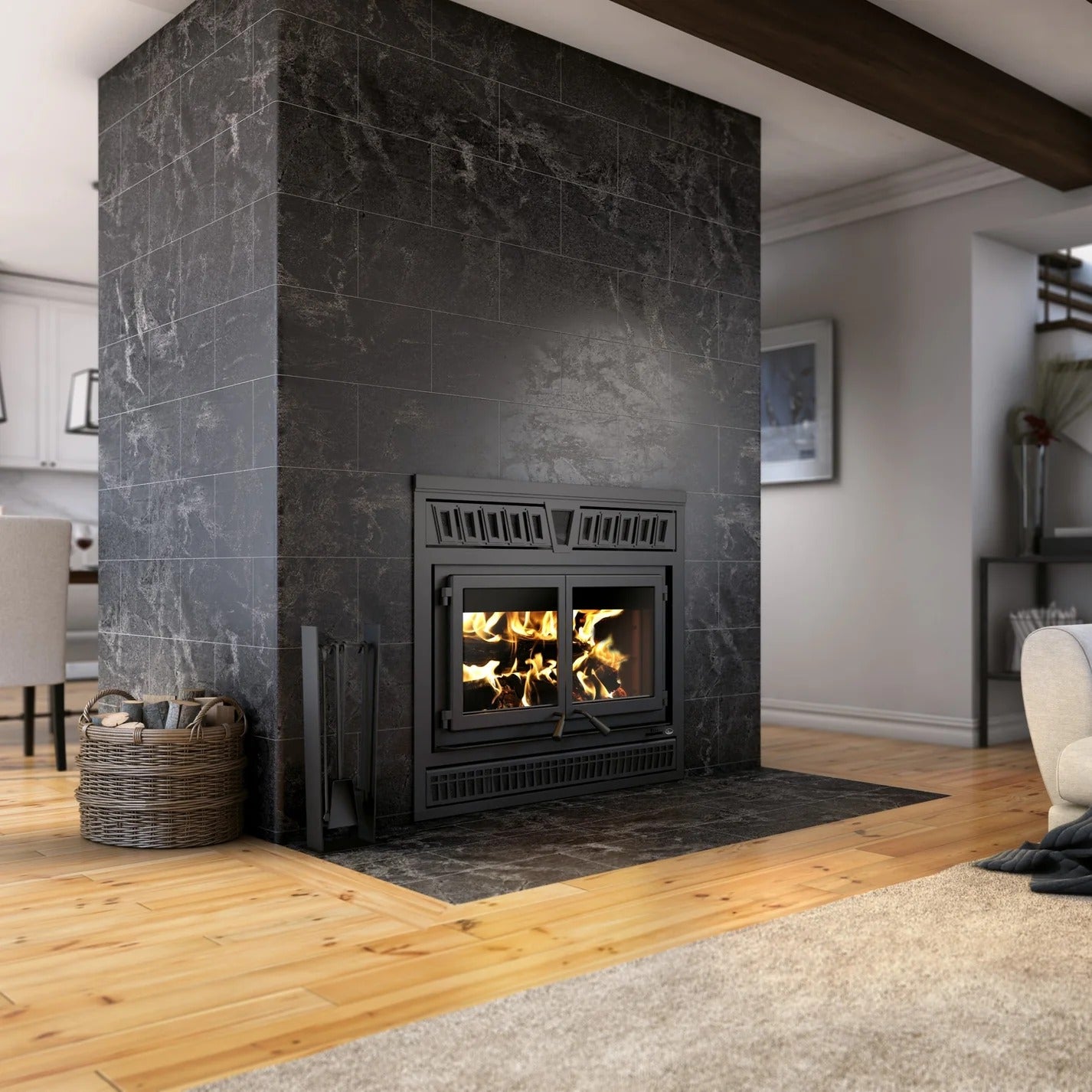

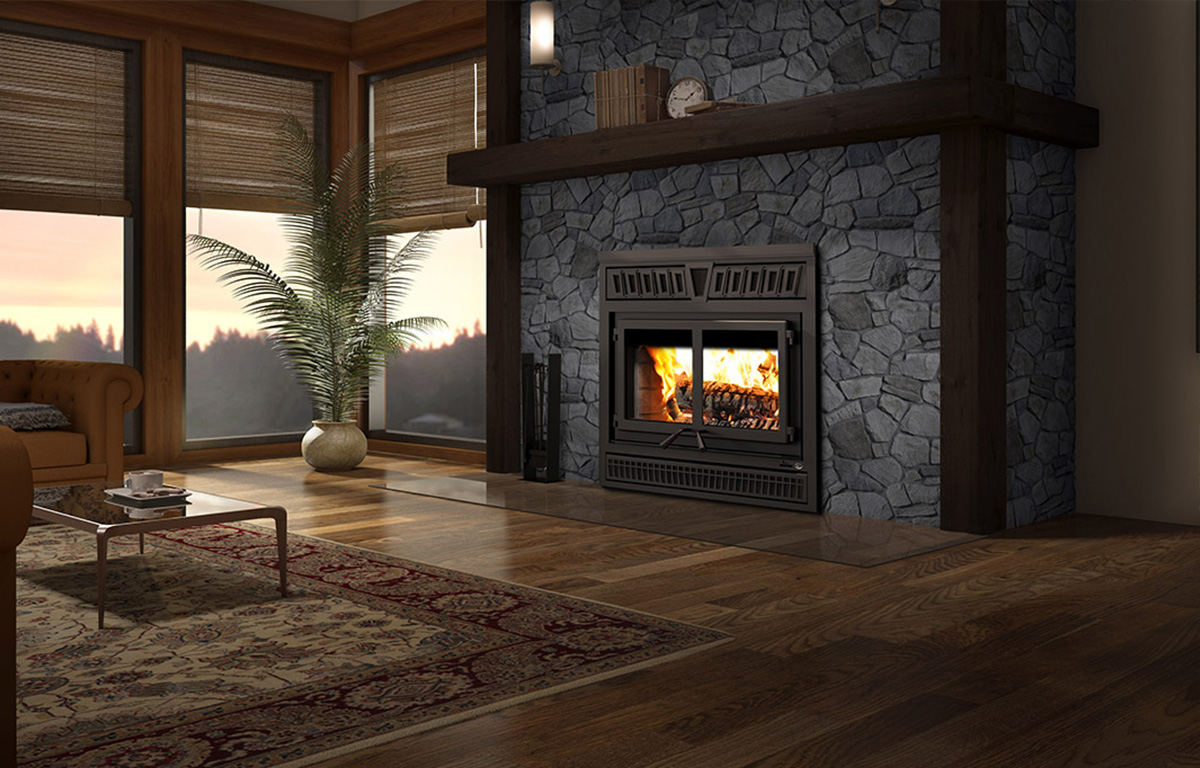

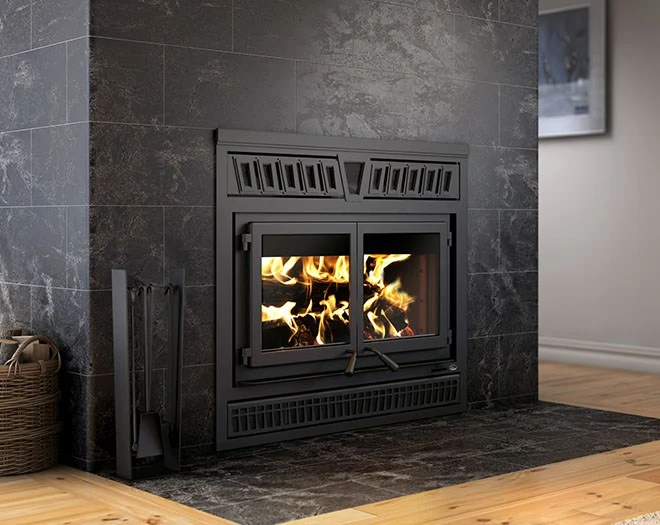

The largest model in our high-efficiency series, the Waterloo wood-burning fireplace is an additional heating source whose style is just as remarkable as its performance. Adorned with a crown-style faceplate, the Waterloo offers an impressive view of the flames. Behind its large glass doors, the firebox can hold a very large amount of wood to heat large spaces and burn for up to 11 hours on a single load.
The Valcourt Waterloo Wood Fireplace is impressive in both size and efficiency. This high efficiency fireplace has a four foot combustion chamber and is capable of holding 60 pounds of firewood. It is capable of heating a large space for up too 10 hours.
FEATURES:
Heating Area: 1,000 - 2,800
Maximum Heat Output: 95,000 BTU/h (27.8KW)
Door: Double Door
High-Efficiency Wood Stove
Optional Chimney Kit
WHY GO FOR VALCOURT WATERLOO WOOD STOVE?
This isn't just a wood fireplace, it's Valcourt's largest high-efficiency model, built with a patented smart air control system that automatically optimizes combustion for maximum heat output and burn time.
The Waterloo specifically addresses the needs of homeowners who want a wood fireplace as a genuine primary or supplemental heat source for large living spaces, not just a decorative feature, without sacrificing style.
Smart Combustion, Real Heating Power.The patented smart air control system automatically closes the secondary primary air damper and adjusts secondary air once optimum combustion temperature is reached, delivering up to 95,000 BTU/h of heat output and an 11-hour burn time on a single load, output that covers a recommended heating area up to 2,800 sq. ft.
WATERLOO WOOD FIREPLACE PERFORMANCE METRICS
Fuel Type
Dry cordwood (16" recommended)
Recommended heating area-ft²
1,000 -2,800
Overall firebox volume-ft³
4.28
EPA loading volume-ft³
4.28
Maximum burn time
11h
Maximum heat output
95,000 BTU/h (27.8KW)
Overall heat output rate <
16,900 BTU/h (5.0 kW) to 43,000 BTU/h (12.6 kW)
Average overall efficiency
64% & 69%
Optimum overall efficiency
70%
Optimum heat transfer efficiency
69%
Average particulate emissions rate
1.6g//h
Average CO
159.0g/h
GENERAL FEATURES
Combustion technology
Non-Catalytic
High-efficiency certified appliance
EPA 2020 approved
Maximum log length
25"
Log positioning
Loading over width
Chimney diameter
8"
Flue outlet diameter
8"
Minimum chimney height
15ft
Baffle type
C-cast or equivalent
Shipping Weight
545 lb
Door type
Double, glass with iron frame
Glass type
Ceramic glass
Moulded refractory bricks
Yes
Warranty
Limited Lifetime

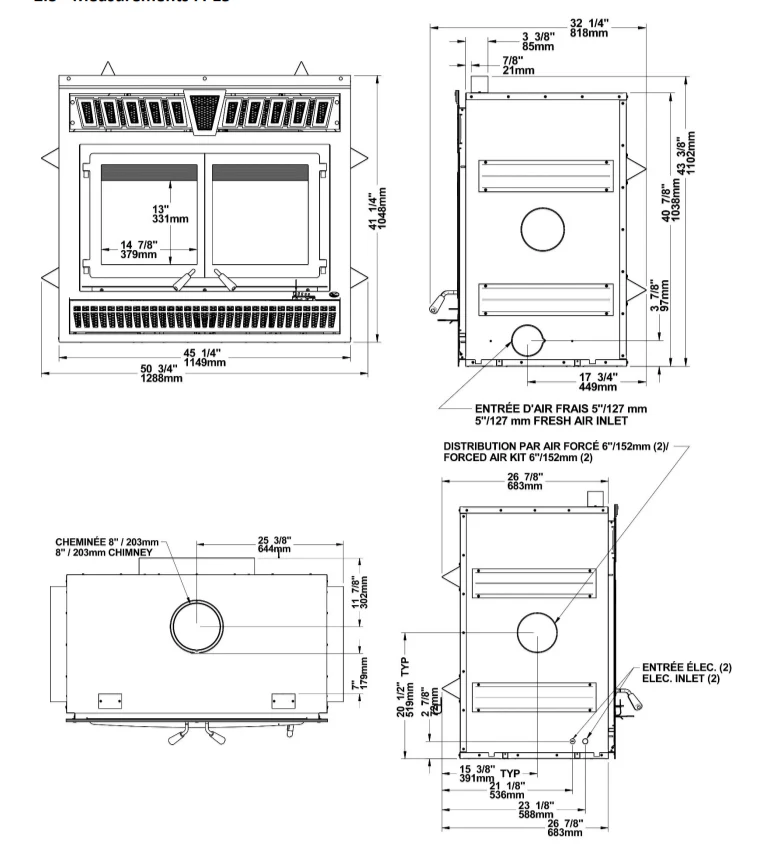

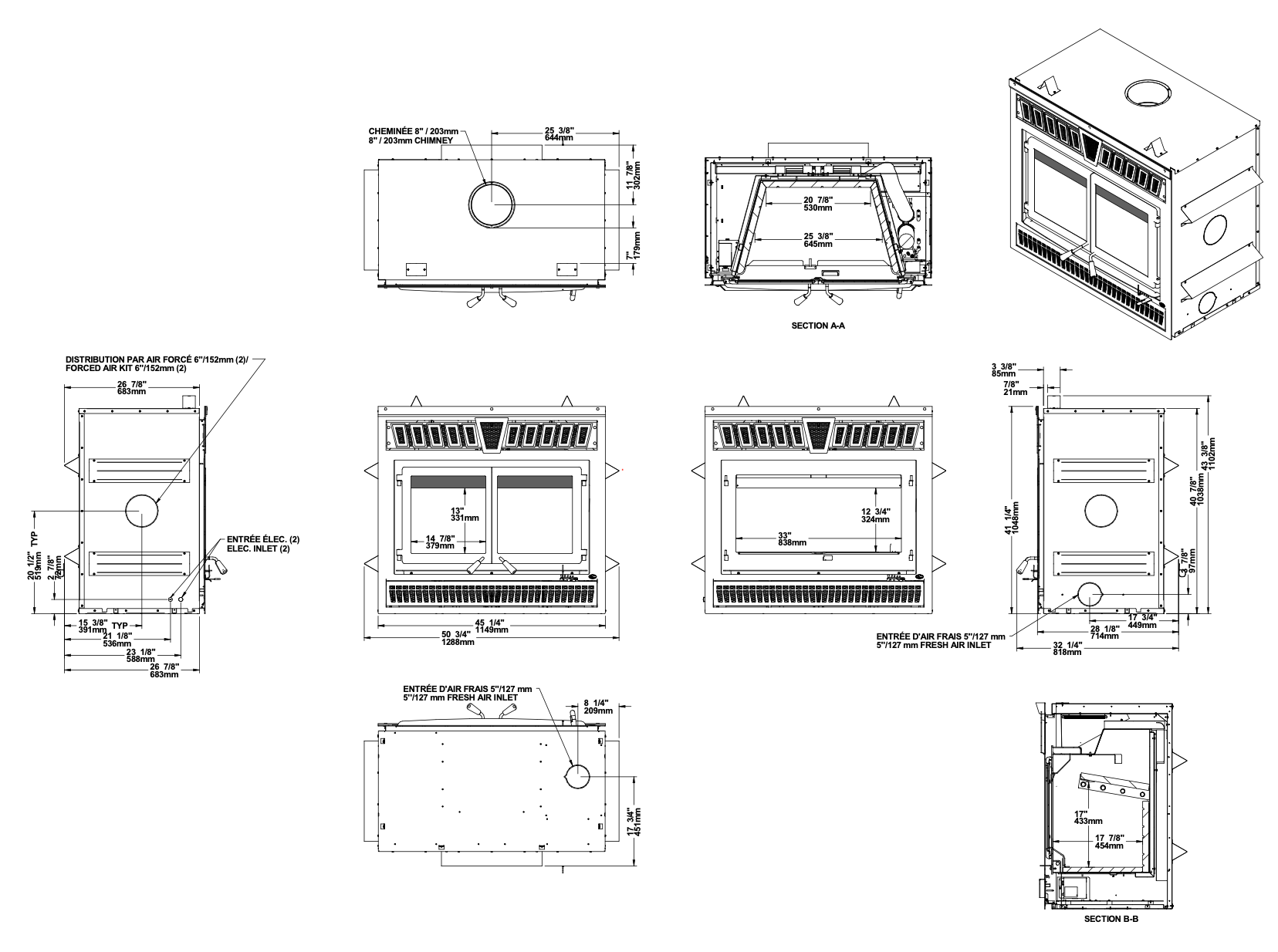

DIMENSIONS:
Overall dimension (Height)
43 3/8"
Overall dimension (Width)
50 3/4"
Overall dimension (Depth)
31 5/8"
Door opening – dimension (Height)
12 3/4"
Door opening - dimension (Width)
33"
Firebox – dimension (Height)
17"
Firebox – dimension (Width)
25 3/8"
Firebox – dimension (Depth)
17 7/8"
USA standard (emissions)
EPA / ASTM WK47329
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL127
Canadian standard (safety)
ULC-S610
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
VALCOURT WATERLOO FACEPLATE AND BRICK LINING
The Valcourt Waterloo FP15 High Efficiency Wood Burning Fireplace Complete With Crown Style Faceplate, And Classic Brick Panels.

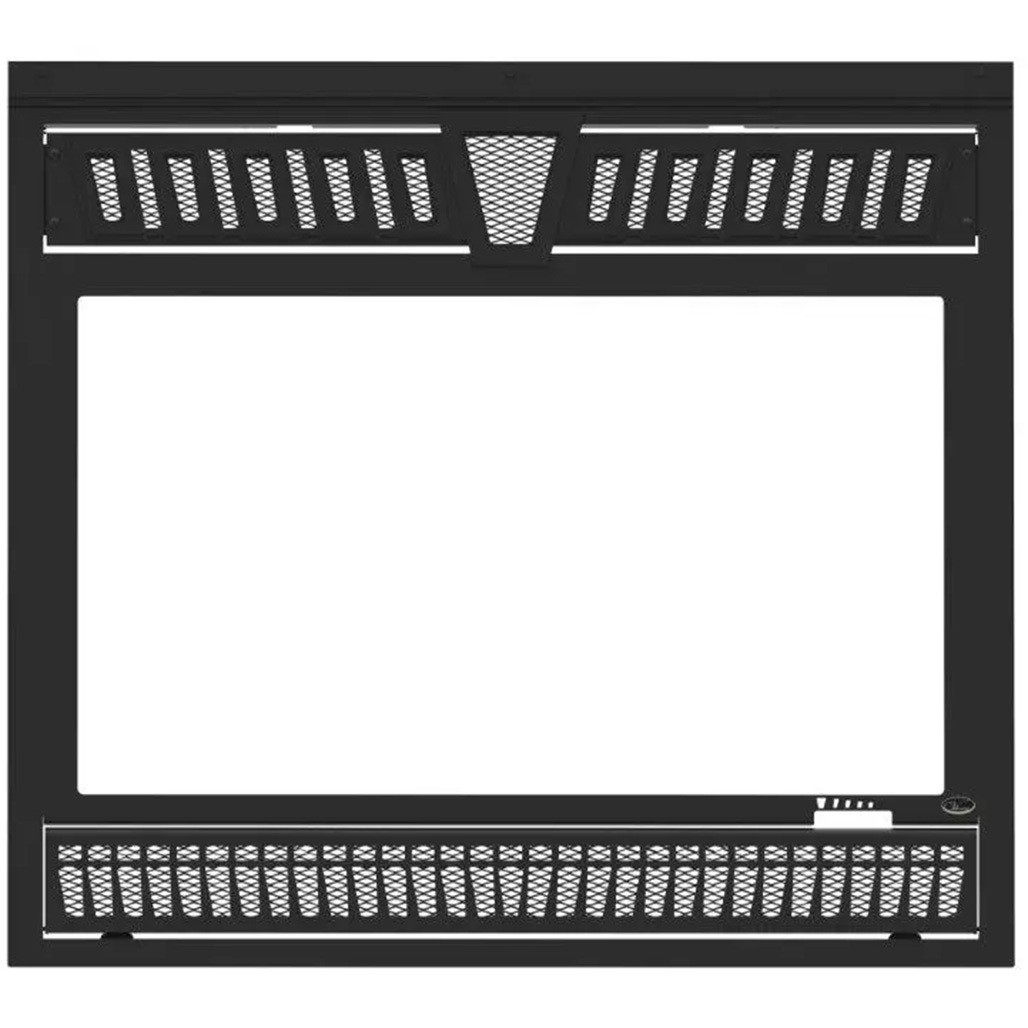

This BLACK ''CROWN'' STYLE FACEPLATE, featuringtop and bottom mesh vents for optimal airflow, is designed for the optimising the efficiency and beauty of Valcourt Waterloo wood fireplace.

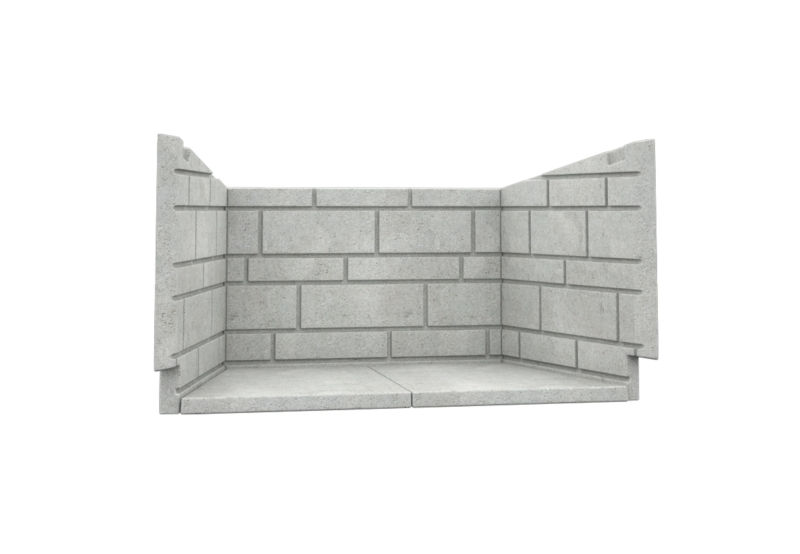

This CLASSIC MOULDED REFRACTORY BRICK PANEL set lines the firebox of the Valcourt Waterloo wood fireplace, recreating the timeless look of a traditional brick hearth.
APPROVED CHIMNEY PIPE TYPES
Venting for these units require specific guidelines that must be met. Please contact us for your chimney configuration FREE OF CHARGE.
We stock all approved chimney types for the Valcourt Waterloo, so you don't have to search elsewhere. Our team is ready to help you choose the right components and guide you through installation, making the setup process simple whether you're a first-time buyer or upgrading your current wood burning fireplace.
DuraVent
DuraTech
1" Solid Pack
8" (20 cm)
DuraVent
DuraTech Canada (DTC)
1" Solid Pack
8" (20 cm)
DuraVent
DuraPlus HTC
2" Solid Pack
8" (20 cm)
DuraVent
DuraTech Premium
2" Solid Pack
8" (20 cm)
DuraVent
DuraPlus
AC Triple Wall
8" (20 cm)
VALCOURT WATERLOO WOOD STOVE CONFIDENCE
This fireplace is startling in size and is a logical and environmentally friendly option for any homeowner looking to combine style and high efficiency. With its ornamental façade, it will be the focal point of any room.

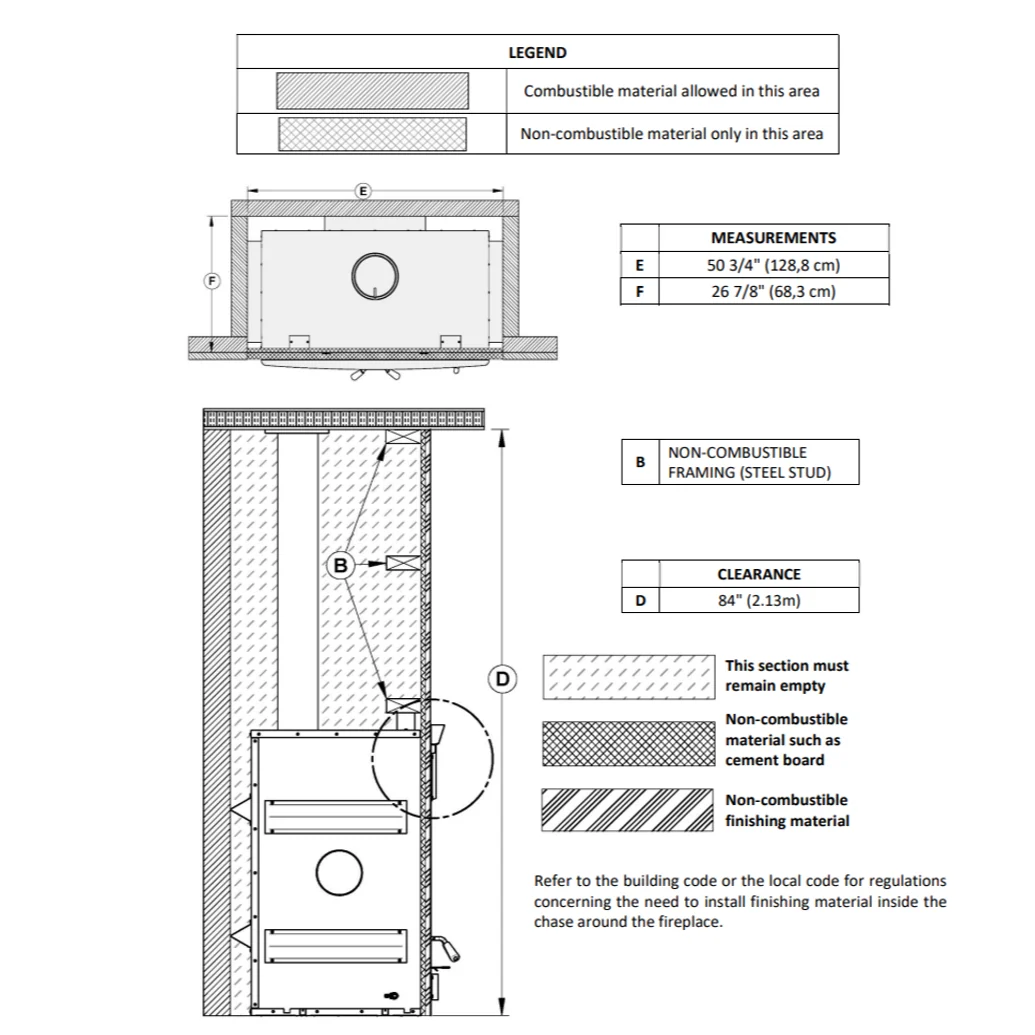

Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm)
United states
Canada
Clearance – top
84"
84"
Clearance – combustible side mantle to unit
8"
8"
Clearance – combustible side wall to unit
24"
24"
Clearance - from the shelf to the base of the fireplace
N.A
N.A
Need a custom fireplace or Stove for your Home? we can have just about anything you think of designed and built. contact us 541.678.0243
We will love to answer your questions to help you make best decision for your fireplace:
Will this be a primary heat source or just supplemental heating?
Will this fit my existing space, wall, or chimney opening?
What is the power output range, and does it match my space's heating needs?
What are the venting or flue requirements, and is my home's setup compatible?
