Valcourt Waterloo Arched Wood Fireplace - Wood Burning Fireplace Inserts, Indoor Fireple - 95,000 BTU
Largest Model With Optimum combustion temperature with 1,000 sq ft - 2,800 Heating Area, EPA 2020 approved, Select the Louver's Option to Build your Fireplace.
FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE
The largest model in our high-efficiency series, the Waterloo wood-burning fireplace is an additional heating source whose style is just as remarkable as its performance. Adorned with a faceplate that suits your style, the Waterloo offers an impressive view of the flames. Behind its large glass doors, the firebox can hold a very large amount of wood to heat large spaces and burn for up to 11 hours on a single load.
FEATURES
- 95,000 BTUs
- EPA Approved
- Heating area of up to 2,800 sq. ft.

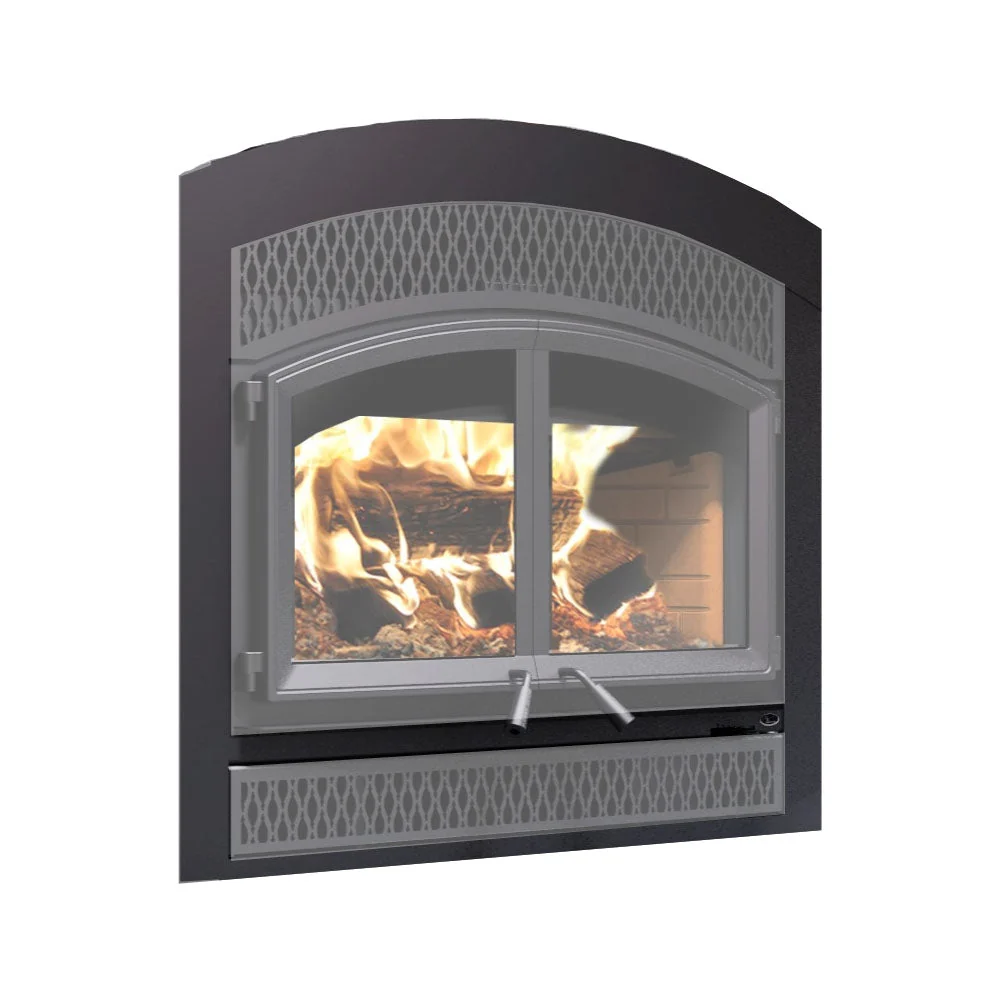

- 4 Arched Louver options available
- Can hold up to 60 lbs. of firewood
- Stylish ornamental facade
- Limited Lifetime Warranty
Then, when the system detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.
APPLIANCE PERFORMANCE:
The Waterloo’s smart air control system (patented) has been specifically designed to optimize combustion efficiency. Once the appliance is on and running, the combustion rate must be slowed down by manually closing the primary air damper.
| Fuel Type | Dry cordwood 16" |
| Recommended heating area-ft² | 1,000 - 2,800 |
| Overall firebox volume-ft³ | 4.28 |
| EPA loading volume-ft³ | 4.28 |
| Maximum burn time | 11 h |
| Maximum heat output-dry cordwood | 95,000 BTU/h (27.8 kW) |
| Overall heat output rate < | 16,900 BTU/h to 43,000 BTU/h |
| Average overall efficiency | 64 % (HHV) and 69 % (LHV) |
| Optimum overall efficiency | 70% |
| Optimum heat transfer efficiency | 69% |
| Average particulate emissions rate | 1.9g/h |
| Average CO | 159.0g/h |
GENERAL FEATURES:
The Air system of the Arched Waterloo detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum Log Length | 25" |
| Log positioning | Loading over width |
| Chimney diameter | 8" |
| Flue outlet diameter | 8" |
| Minimum chimney height (feet) | 15 ft |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 545 lbs |
| Door type | Double, glass with cast iron frame |
| Glass Type | Ceramic Glass |
| Moulded refractory bricks | Yes |
| Warning | Prop 65 |
| Efficiency | 69.7% |
| Color | Black |
| Item Weight | 545 lbs |
| Assembly Required | Yes |
| Certification | EPA Certified | CSA B415.1-10 | ULC-S610 | UL 127 |
APPROVED CHIMNEY PIPES
| DuraVent | DuraTech | 1" Solid Pack | 8" |
| DuraVent | DuraTech Canada (DTC) | 1" Solid Pack | 8" |
| DuraVent | DuraPlus HTC | 2" Solid Pack | 8" |
| DuraVent | DuraTech Premium | 2" Solid Pack | 8" |
| DuraVent | DuraPlus | AC Triple Wall | 8" |
WATERLOO WOOD-BURNING

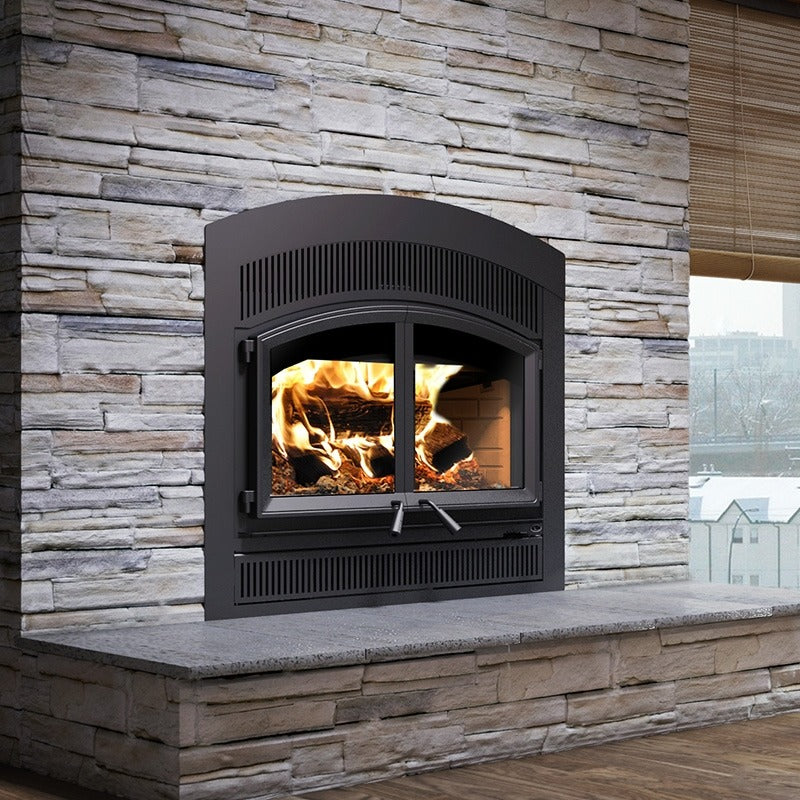

The Valcourt Waterloo Arched Fireplace comes standard with moulded refractory bricks for better heat distribution and a black arched faceplate, while giving you four different options for the louver to give it your own flare.

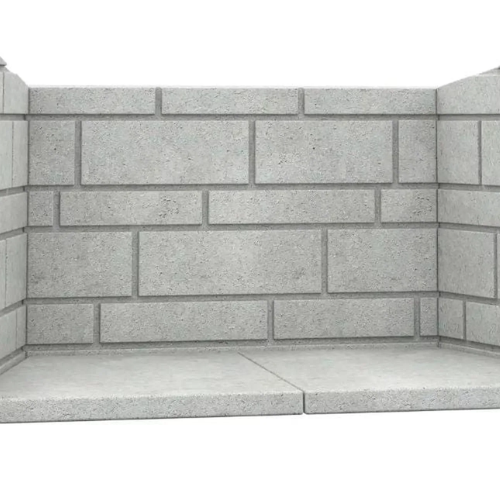

Moulded Refractory Brick Option:
Black Arched Faceplate:

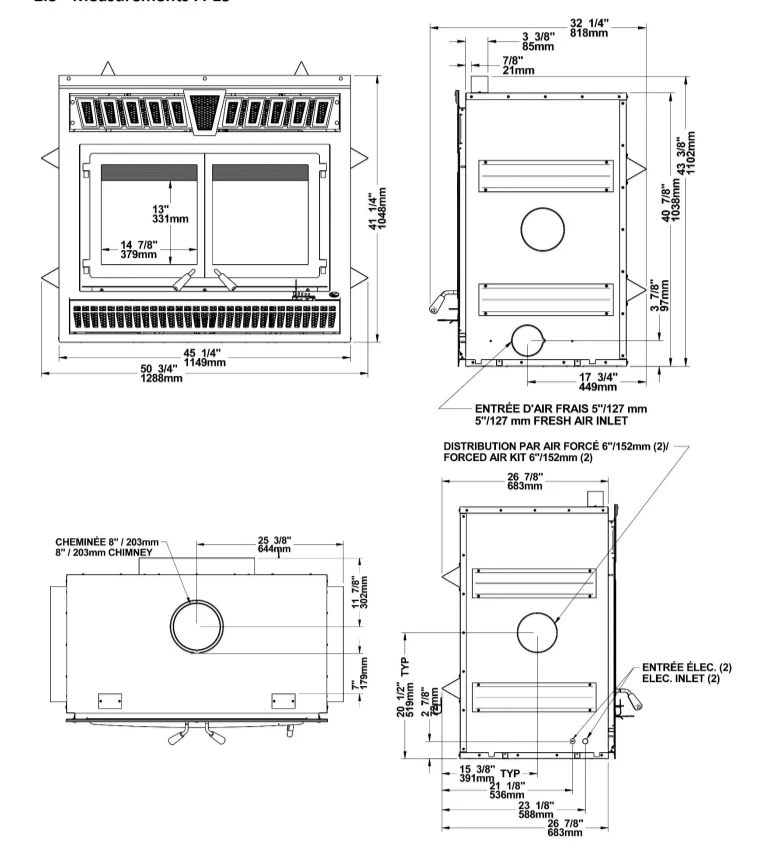

DIMENSIONS
| Glass surface – dimensions (Width X Height) | 29 3/4" X 13" |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 43 3/8" |
| Overall dimension (Width) | 50 3/4" |
| Overall dimension (Depth) | 31 5/8" |
| Door opening – dimension (Height) | 12 3/4" |
| Door opening - dimension (Width) | 33" |
| Firebox – dimension (Height) | 17" |
| Firebox – dimension (Width) | 25 3/8" |
| Firebox – dimension (Depth) | 17 7/8" |

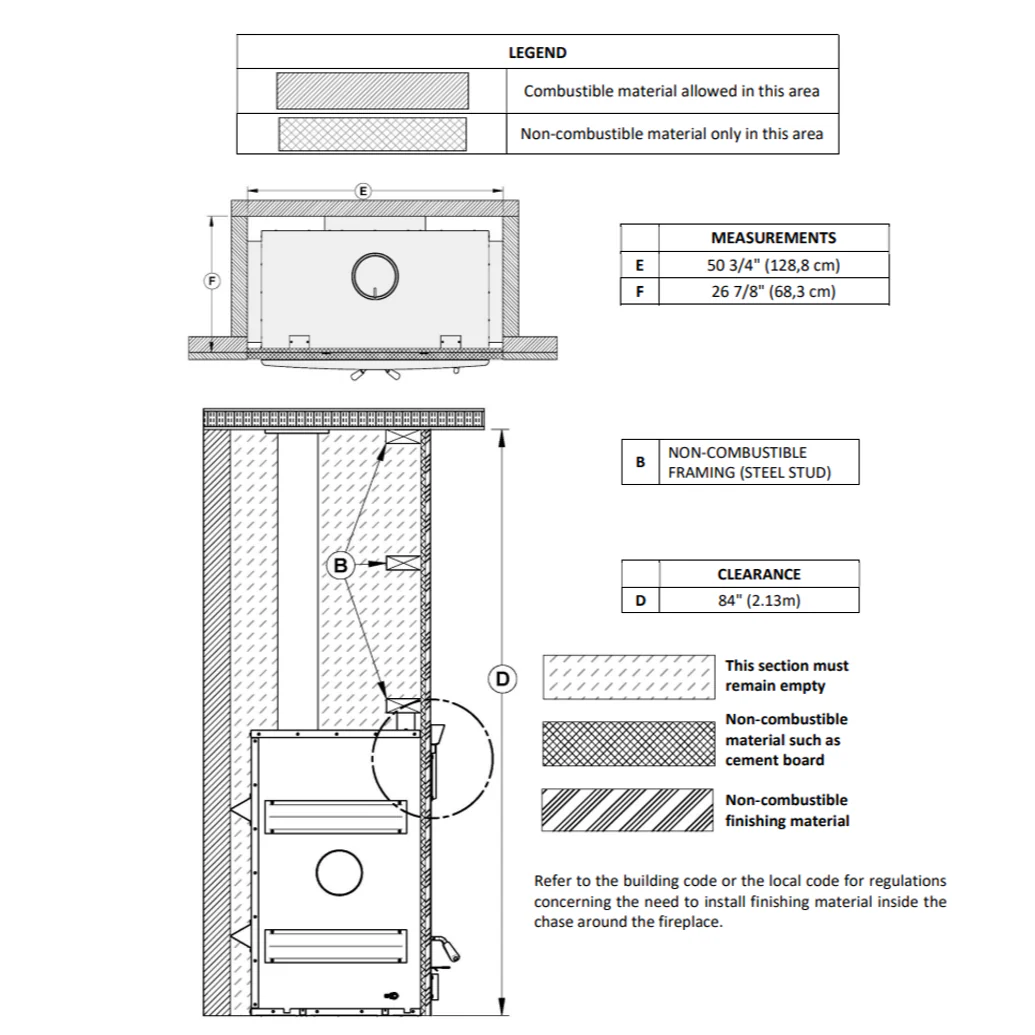

Venting for these units require specific guidelines that must be met. Please consult us 541.678.0243 to configure your venting options.
