Osburn Matrix Wood Stove Is Now Available and Ready to be Ship - The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution.

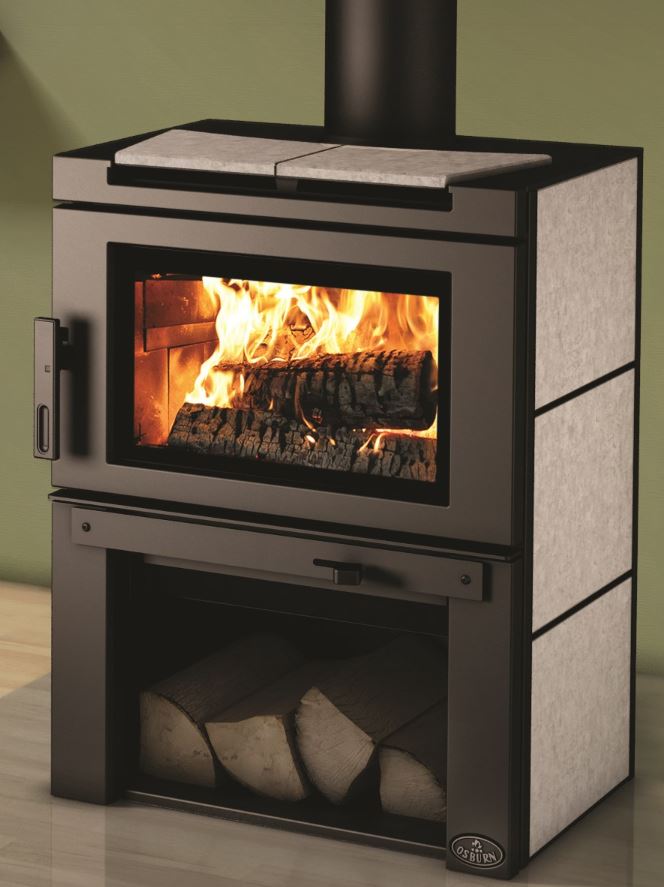

The Soapstone or black side panels Kit and steel top panel gives your Wood stove a Stunning Look. Don't forget your Accessories.
FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE
The Osburn Matrix delivers European elegance with serious heat output. This one-sided wood burner transforms your space into a cozy retreat while keeping your home toasty through brutal winters. Bold design meets reliable performance—exactly what your fireplace should be.
You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater.
OSBURN MATRIX FEATURES:
• Approved for an alcove installation : Yes
• Chimney diameter : 6″

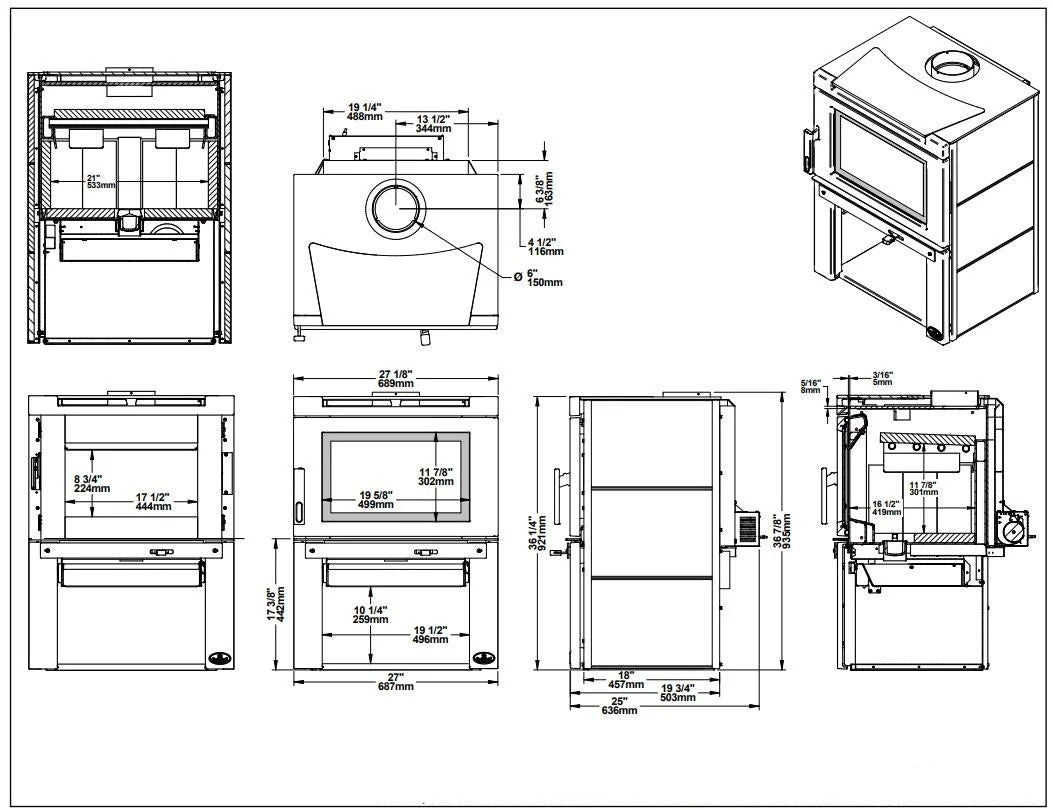

• Height X Width X Depth–Overall: 36 7/8″X27 1/8″X25″
• Average particulate emissions rate : 2.3 g/h
• Maximum log length : 20″
• Approved for a mobile home installation : Yes
• Shipping Weight : 506 lb (230 kg)
• Recommended heating area-ft² : 500 – 2,100
• Combustion Technology : Non-catalytic
• Maximum burn time : 8 h
• Blower included : Yes
• Overall firebox volume-ft³ : 2.4
UNIT SPECIFICATIONS:
| Color: | Black |
| Fuel Type: | Dry cordwood (16" recommended) |
| Combustion Technology: | Non-catalytic |
| Recommended Heating Area: | 500 - 2,100 ft² |
| Overall Firebox Volume: | 2.4 ft³ |
| Loading Volume EPA: | 1.95 ft³ |
| Maximum Burn Time: | 8 Hours |
| Maximum Heat Output-Dry Cordwood: | 75,000 BTU/h |
| Minimum Overall Heat Output Rate: | 14,200 BTU/h (4.16 kW) |
| Maximum Overall Heat Output Rate: | 44,500 BTU/h (13.04 kW) |
| Average Efficiency-Dry Cordwood (HHV): | 72 % |
| Average Efficiency-Dry Cordwood (LHV): | 77 % |
| Optimum Efficiency: | 79 % |
| Baffle Material: | C-Cast or equivalent |
| Average Particulate Emission Rate: | 2.3 g/h |
| Average CO: | 69 g/h |
| Maximum Log Length: | 20" |
| Recommended Log Length: | 16" |
| Log Positioning: | Loading over width |
| Flue Outlet Diameter: | 6" |
| Door Opening Dimensions (W x H): | 17 1/2" x 8 3/4" |
| Firebox Dimensions (W x D): | 21" x 16 1/2" |
| Glass Air-Wash System: | Yes |
| Glass Surface Dimensions (W x H): | 19 5/8" x 11 7/8" |
| Glass Type: | Ceramic glass |
| Door Type: | Single, glass with cast iron frame |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC-S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) | ||||
| Canada | United-States | |||
| Single wall pipe | Double wall pipe | Single wall pipe | Double wall pipe | |
| Clearance – back wall | 14 1/2" | 6" | 11" | 6" |
| Clearance - corner | 10" | 7" | 10" | 7" |
| Clearance – side wall | 17" | 17" | 16" | 16" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" | 84" | 84" |
| Clearance – minimum floor protection in front of the appliance | 18" | 16" | ||
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
INSTALLATION
The installation of this stove is quick and easy, and it offers convenience without compromising performance. The Osburn Matrix Wood Burning Stove offers the ultimate in comfort and efficiency. With the Osburn Matrix Wood Burning Stove, you can experience efficiency, style, and convenience all at once. With this exceptional stove, every moment spent indoors will be made more comfortable, bringing warmth and beauty to your space.
If you need help with your purchase or you want recommendation for fireplaces please get in touch through call or email us! 541.678.0243 and we will assist you with your purchase.
