The Montigo Exemplar RP424 is a premium 3-sided see-through direct vent gas fireplace insert engineered for modern luxury interiors. With a panoramic three-sided viewing area — 42" W × 16⅛" H per side — up to 45,000 BTU output, and available in natural gas or propane, the RP424 delivers exceptional warmth and a captivating flame display from multiple angles. Whether you're designing an open-concept room divider fireplace, an indoor-outdoor see-through fireplace, or a dramatic focal point for a high-end living space, the Montigo RP424 is built to impress.
FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE
KEY FEATURES:
- 3-Sided Panoramic Viewing: 42" W × 16⅛" H frameless glass on three sides — see the flame from every angle
- Up to 45,000 BTU Output (LP) — powerful, efficient heat for large open-concept spaces
- Direct Vent Technology — sealed combustion for clean, safe indoor installation
- Concealed Burners for a clean, unobstructed flame view
- Halogen Uplighting for dramatic ambiance even when not in use
- Reflective Firebox Liner — maximizes flame depth and visual impact
- 12 Burning Display Options — fireglass, firestones, firebeads, and speckled stones
- Proflame 2 IPI Ignition System — reliable intermittent pilot ignition
- Micro Mesh Safety Screen included
OPTIONAL ACCESSORIES:
- Driftwood logset
- Wall-mounted or multi-function remote control
- Power vent systems (wall, flush wall, or roof-mounted)
- WiFi module for mobile app control
MODEL CONFIGURATION
STANDARD CONFIGURATION
- Linear burner with Ice Fireglass media
- Frameless glass on three sides
- Proflame 2 IPI ignition system
- Micro mesh safety screen
- Clean face design for a seamless built-in look

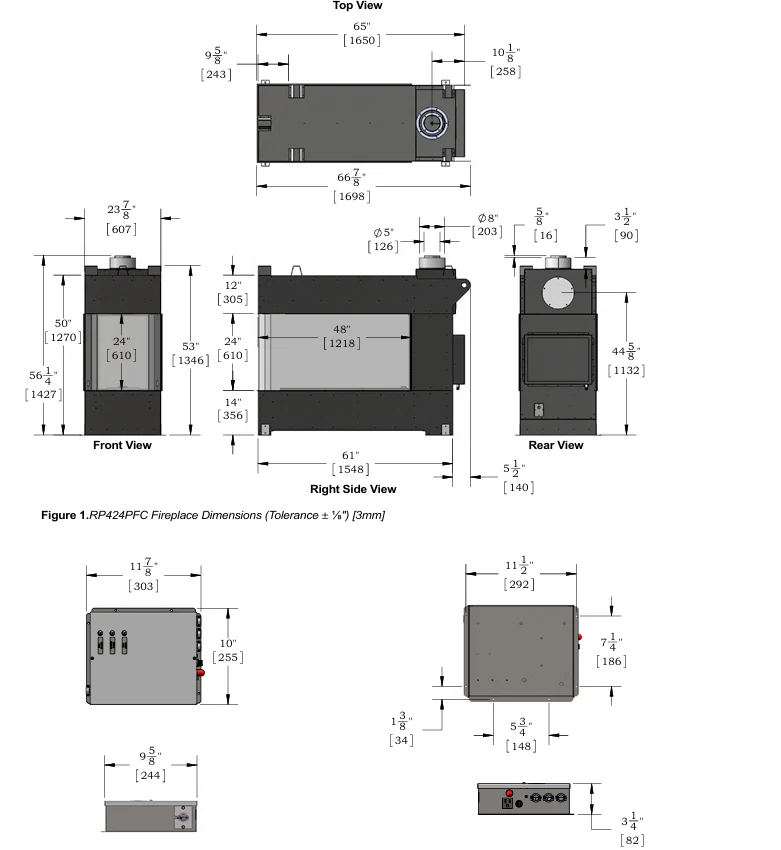

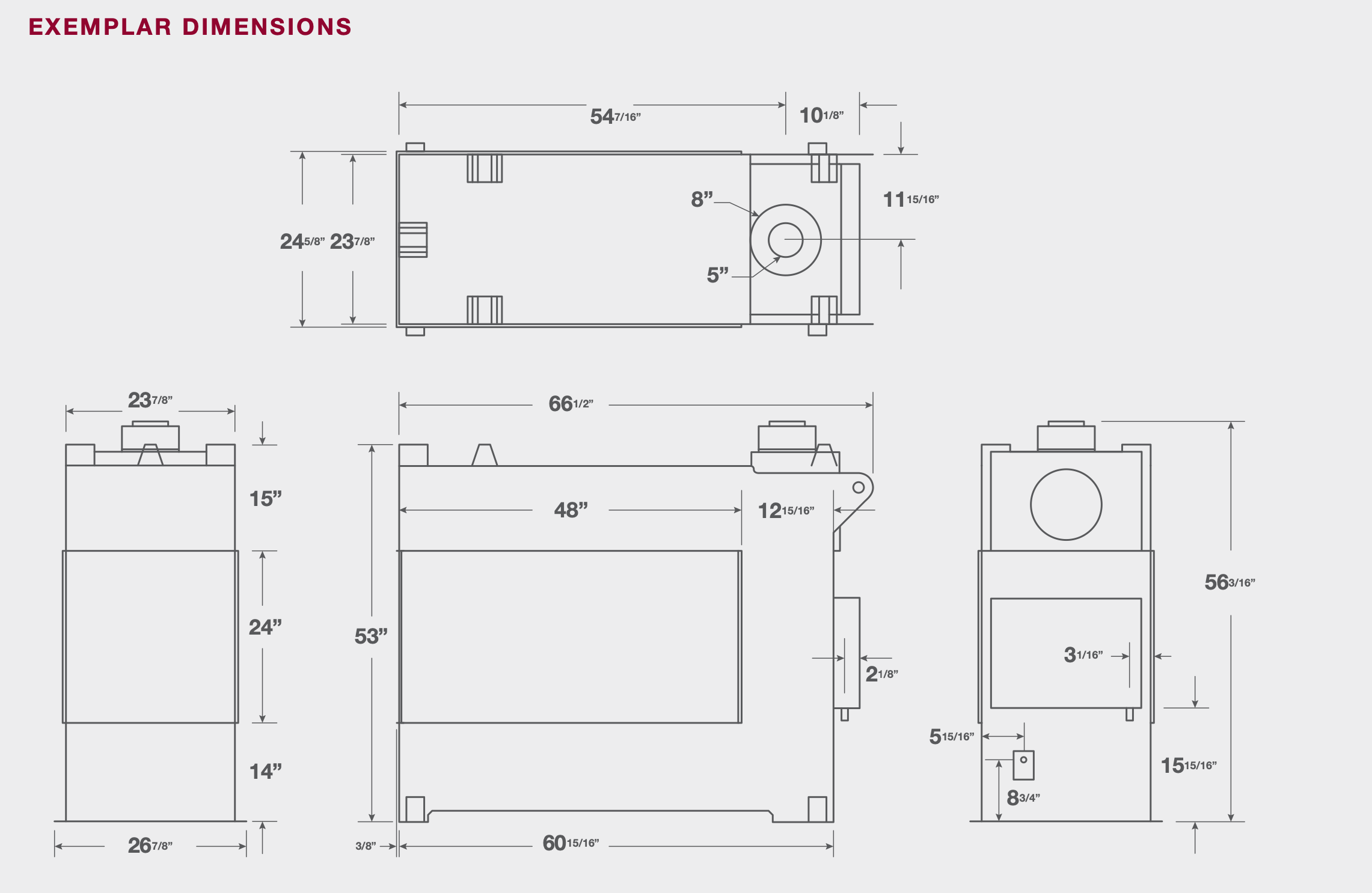

TECHNICAL DRAWING:
SPECIFICATIONS:
| Model: | RP424 |
| Fuel Type | Natural Gas, Propane |
| Vent Type | Direct Vent |
| Glass View | 3-Sided (Multi-Sided See-Through) |
| Ignition | IPI – Intermittent Pilot Ignition |
| Installation | Built-In |
| Max BTU (NG/LP) | 45,000 |
| Framing Width | 66 1/2" |
| Framing Height | 53" |
| Framing Depth | 24" |
| Glass Opening Width | 24" |
| Glass Opening Height | 48" |
| Inner Vent Size | 5" |
| Outer Vent Size | 8" |
| Max Elevation | 4,500 ft |
ESSENTIAL INSTALLATION REQUIREMENTS:
Installations must adhere to Montigo's certified guidelines for venting, framing, and clearances. A professional installer is strongly recommended. When using Cool Wall Release or Cool Wall Advantage systems, internal fans must be disconnected to avoid excessive heat buildup. The RP424 is approved for use up to 4,500 feet elevation and is suitable for covered outdoor rooms when installed per Montigo's specifications.
