Montigo DelRay Linear 36" FULL LOAD MODEL

The Perfect Companion to Today's Design Trends

Introducing the full load DELRAY DRL3613-2. This minimalist residential gas fireplace offers elegance and efficiency at an entry-level price point.

At a slim 14¼” framing depth and 4/7 direct venting, the DelRay can add sleek contemporary styling to both new construction and retrofit installations at minimal impact to floor space.

The DELRAY is a high-efficiency, mobile home-compatible fireplace that is ready to customize with any of our stunning burner media options. Combustible wood facing can be installed right down to the glass opening.

|

Additional features include heat management, propane conversion kits, trim kits, and more.

• Standard Concealed burner with Ice fireglass
• Full feature Proflame 2 remote control
• Remote-controlled fans
• Invisimesh screen
• Black reflective glass
• Halogen downlighting

Options

• Propane conversion kit S
• peckled stones, driftwood, firestones, firebeads or fireglass

SPECS AT-A-GLANCE:

Max BTU (NG)	16,000
Framing Width	43 3/8"
Framing Height	33 11/16"
Framing Depth	14 1/4"
Glass Opening Width	36 1/2"
Glass Opening Height	14 11/16"
Inner Vent Size	4
Outer Vent Size	7
Commercial	No
Customizable	No
P.4. 1-15 Efficiency NG	71.0%
P.4. 1-15 Efficiency LP	71.0%

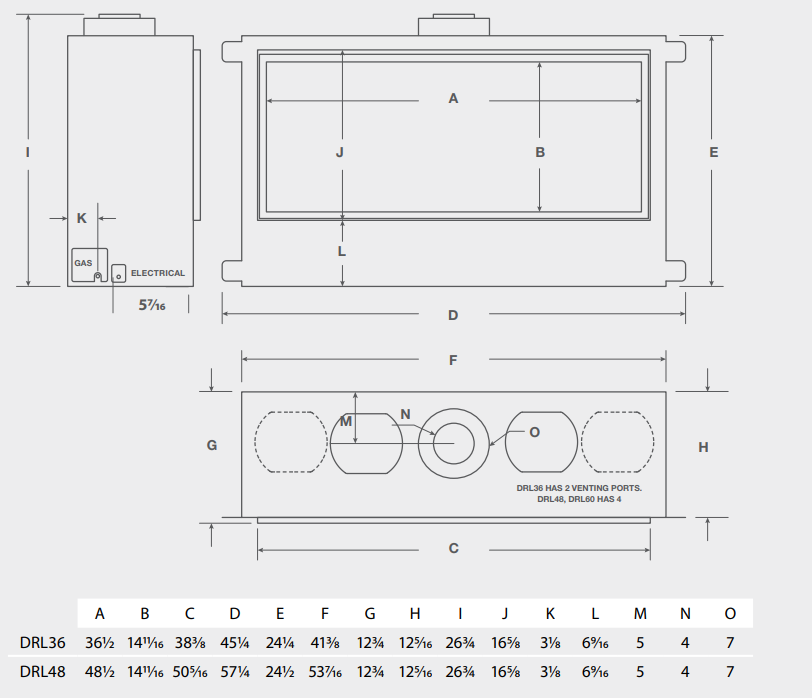

Dimensions:
