      Invicta® Nelson 36" Double-Sided See-Through Cast Iron Wood Burning Stove | 99,000 BTU | Made in France

      $5,499.00 USD
      $5,799.00 USD

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments

      Invicta Nelson 36" Cast Iron Stoves See through double glass fireplace

      FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE

      The two glass sides of our Nelson stove give a unique character to your home. Cozy evenings await while enjoying the see through design. Settle in on either side of the stove, and listen to the unmistakable sound of the crackling fire as you watch the flames dance.

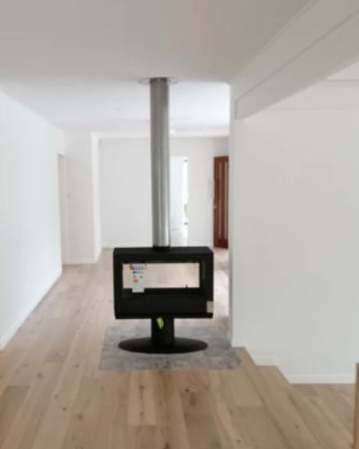

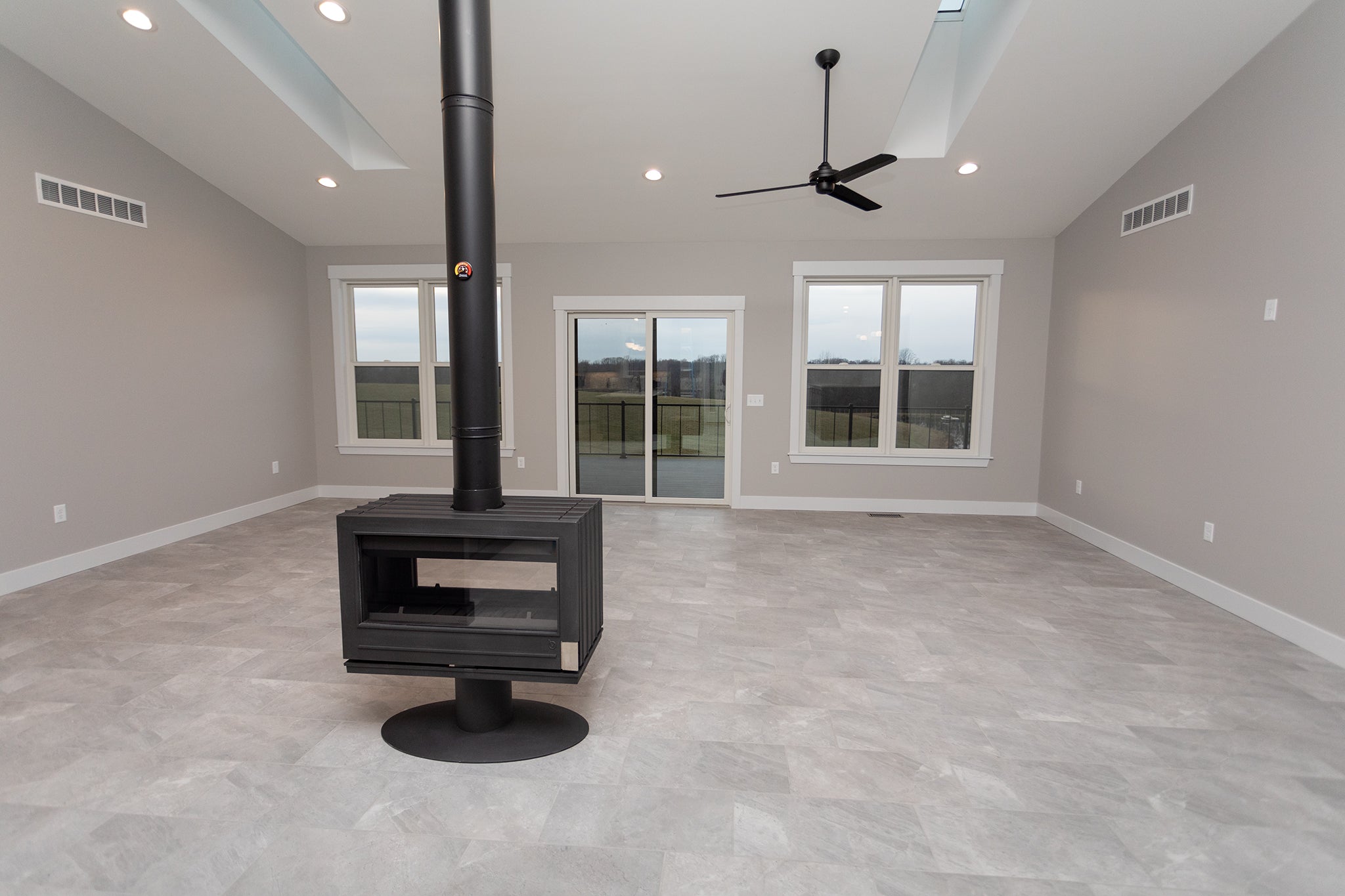

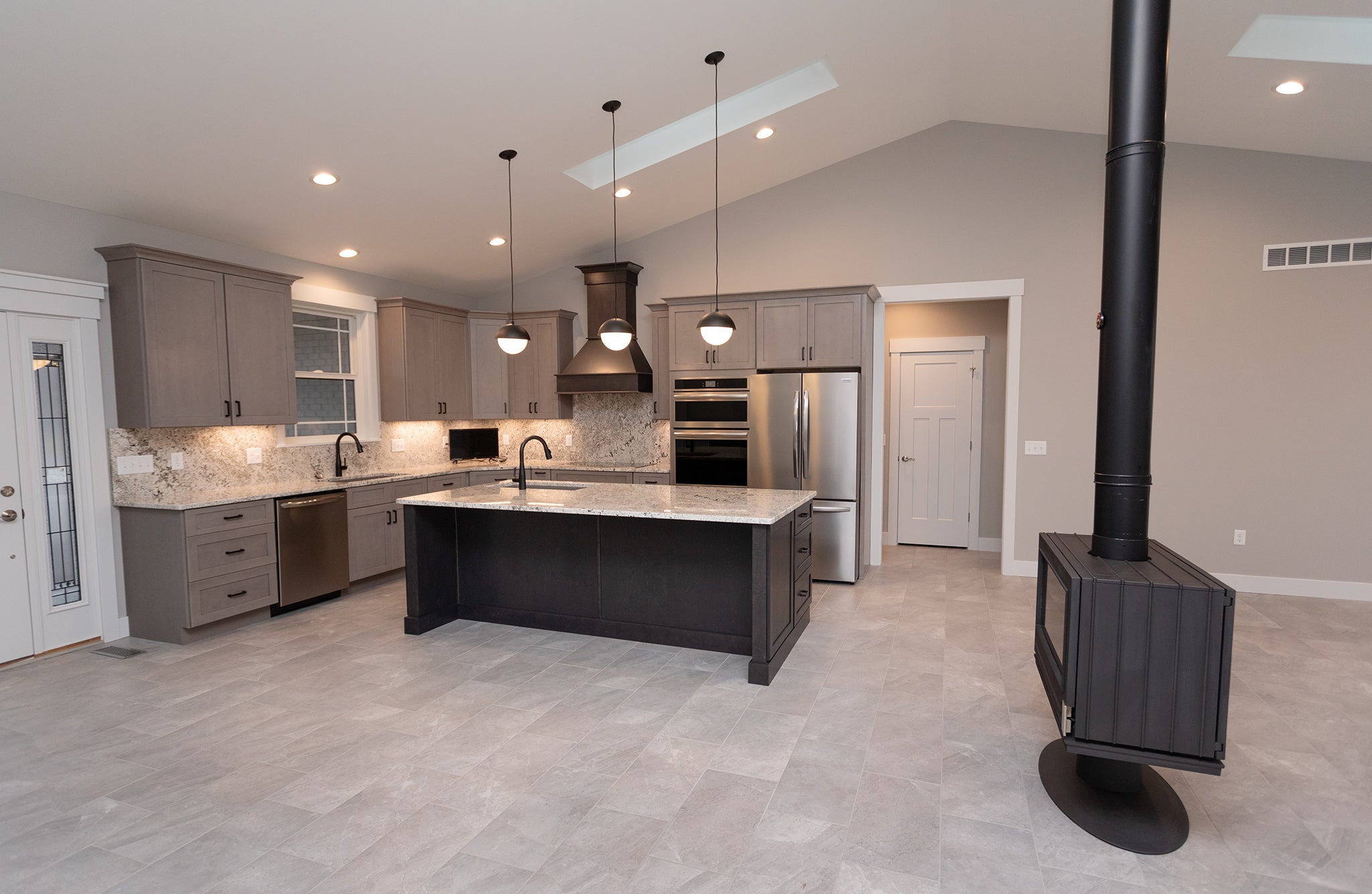

      Pleasant evenings ahead, at each side of the stove, the rhythm of the crackling fire and dance of the flames are now unmissable. Have it set in the middle of a room to create a central fire attraction or as a room divider between two room, this stove will let you have an open space with a totally clear vision all around.

      This double sided stove gives a unique character to your home. A double sided modern clean lined slow combustion cast iron wood stove that has amazing proportions and very impressive heat output.

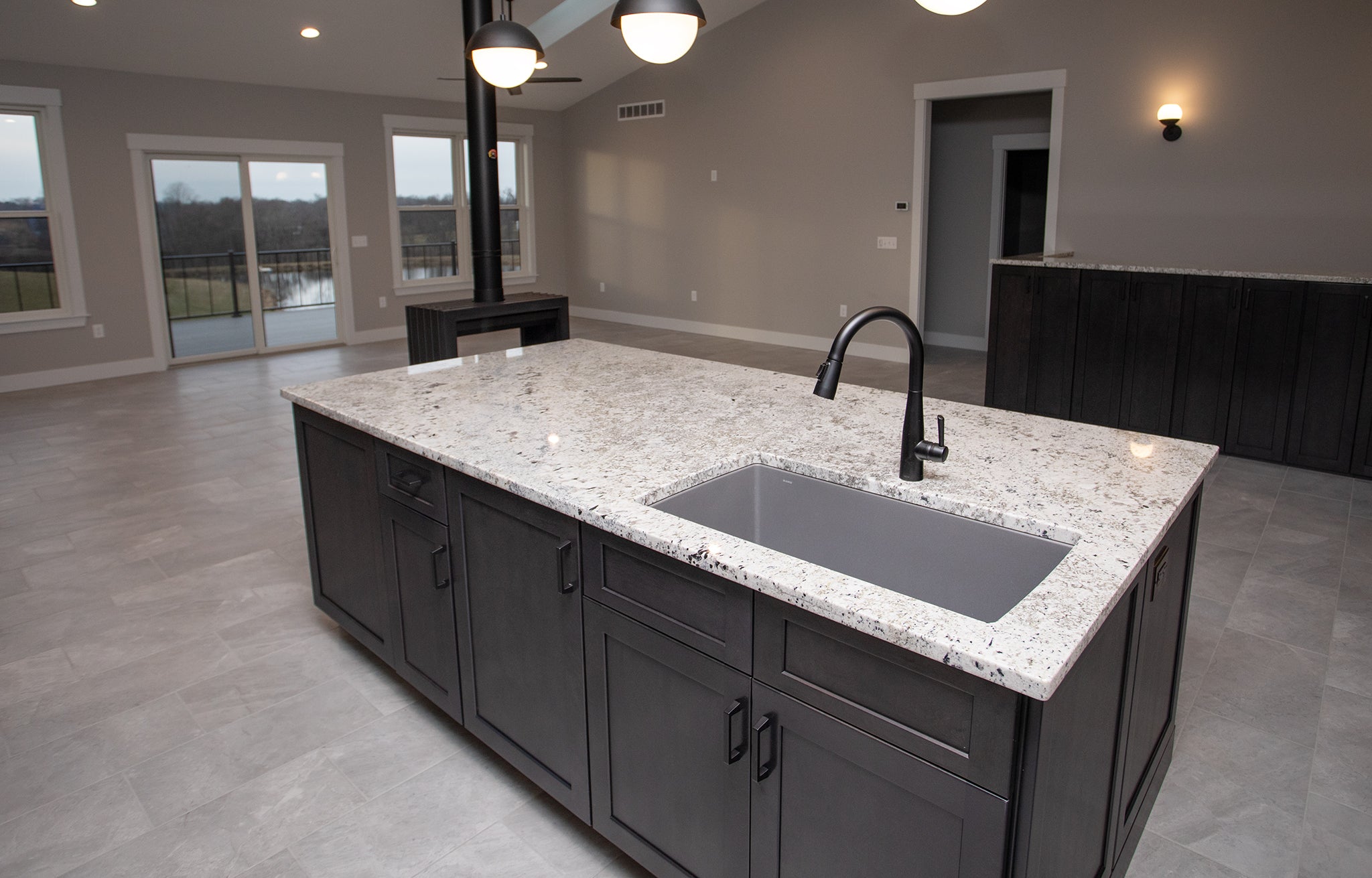

      The Invicta Nelson Cast-Iron See-Through Wood Stove features a double sided viewing window, making this stove an excellent choice for inner room installation. The Nelson is ideal for central placement and will easily become the focal of your interior space. Nelson is double sided with double doors.

      Kicking out about 99,000 BTUs of heat the Invicta is a great stove option for a 800 sf room all the way up to over 1,800+ sf
      and EPA Rating of 70% making it ready to be installed in just about any home in the USA

      Double facing, two sided wood stove - one of the only see through wood stoves you can get in the US
      Double opening

      Unit has two doors. Ideal for separating two rooms to reload the wood from one side to another.

      Intermittent

      The unit operates with regular loading of small quantities of wood. This operating method is particularly high-performing and respectful of the environment.

      This See Through glass fireplace brings a post modern style with a function that people love. Seeing through your fireplace opens up the room or in some cases people will use this fireplace in a wall that separates rooms.

      Total height of the Nelson with the base stand is 36.61" tall (below flue)
      approx 36" wide

      Features

      OPTIMAL POWER
      		 12 kW
      POWER MODULATION
      		 8 to 18 kW
      HEAT VOLUME
      		 160 - 360 m³
      HEATING SURFACE
      		 65 to 145 m²
      EFFICIENCY
      		 70 %
      CO RATE
      		 0.15 %
      CONCENTRATION OF POWDERS
      		 82 mg/Nm³
      PERFORMANCE INDEX
      		 1,2
      COMBUSTILE
      		 Logs 25, Logs 33, Logs 50 cm
      MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
      		30 in
      LOAD
      		 Two front sides
      SMOKE EXHAUST
      		 Top
      DIAMETER OF NOZZLE
      		 180 mm

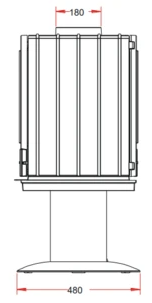

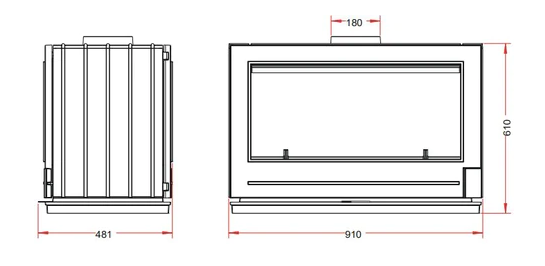

      DIMENSIONS

      H 610 x W 910 x D 480 mm (24 x 35.8 x 18.9 in.)

      Clearance to Combustibles48" / 23" / 48"
      Glass Dimensions 356mm x 763mm x 4mm
      WEIGHT
      		201 kg
      DESIGN
      		 Contemporary
      MATTER
      		 Cast Iron
      COMPLETION
      		 Anthracite
      CERTIFICATION
      		 EN 13240
      GUARANTEE

       5 years

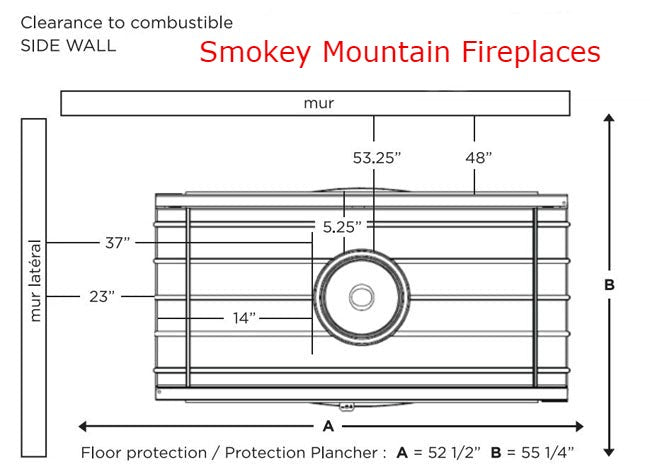

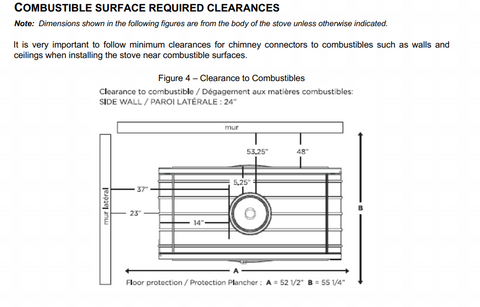

      Wall Clearances

      Installation Questions?



      Here is the

      And

      Spacing needed from combustibles -23" side to side

      Spacing from non combustibles - There’s no restriction for non-combustible wall, but a sheet of cement board fixed to wood stud is not consider as non-combustible wall. For that, they need to check with the local code because it’s different in each state. The Hearth is required - 16" front and rear and 8" on each side

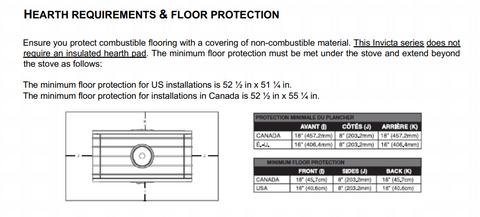

      Hearth size requirements

      Chimney Height Requirements:  At least 3 feet (0.9 m) higher than the highest part of the roof opening through which it passes. • At least 2 feet (0.6 m) higher than any part of the roof within 10 feet (3 m) measured horizontally from the top of the chimney. The recommended minimum chimney height is 15 feet (4.5 m) off the floor. The recommended maximum chimney height is 45 feet (13.5m). This Invicta series requires a draft between 0.06” and 0.1” water column. Ensure your chimney is long enough to provide the minimum draft, and use a damper if your installation has a required chimney height that provides too much draft.

      Would you like to see all the

      Why this product?

      Invicta is the best example of balance between history, craft and European design. It’s also Europe’s largest manufacturer of cast iron stoves, fireplaces and insert.

      The Invicta foundry is located in Donchery since 1924, in the Champagne-Ardenne region of France, and is one of the oldest and largest working foundries in Europe.

      8 hour extended burning

      The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

      Adjustable secondary air

        Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

        Clean glass

          The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

          Origine France Garantie (Made in France Guarantee)

          The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

          Post-combustion system

            Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

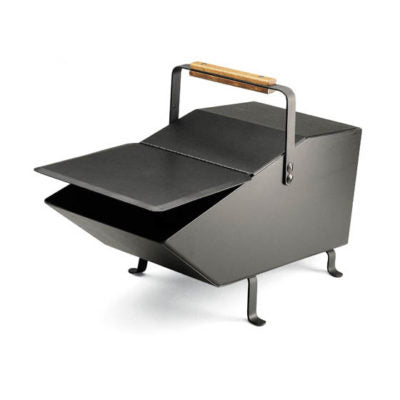

            is a common add on for this fireplace as well

             Invicta, French foundry and enamel plant is implanted since 1924 at Donchery in the region Champagne-Ardenne. With 280 employees, these stoves are truly hand made.


            Do you own a Nelson and maybe have low flow? these are some common things that cause the Aaron or Nelson to not burn to their full potential. Most of the time we had issue, customer either:

            • Reduce the flue pipe or the chimney to 6’’
            • Not enough chimney height (recommended 15’ from bottom of stove)
            • Door get closed to fast
            • And most of the time, wood too damp

            Need a custom fireplace, we can have just about anything you think of designed and built. contact us 541.678.0243
