      Invicta® Kazan Grand Angle Cast Iron Wood Stove

      $4,779.00 USD

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments

      Kazan GA 30" Cast Iron Stoves

      FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE

      Featuring a screen-printed “grand angle” (GA) pane, our Kazan stove is both powerful and chic. Its fins are designed with an extended heat transfer surface for improved energy efficiency.

      Directly inspired by the thermal efficiency of cast iron radiators, Kazan Grand Angle (GA) combines design and performance. The fins give it a unique and elegant streamlined style, while enhancing energy performance through increased heat exchange surface.

      The Kazan GA (Grand Angle), manufactured in France by Invicta, is inspired by the thermal efficiency of cast iron radiators. The elegant and innovative design of the fins is where composition and production meet while also providing enhanced energy performance through its increased heat exchange surface.

      Features

      OPTIMAL POWER
      		 9 kW
      POWER MODULATION
      6 to 13.5 kW
      HEAT VOLUME
      125 to 275 m³
      HEATING SURFACE
      50 to 110 m²
      GREEN FLAME
      		 7 stars
      EFFICIENCY
      		 76%
      CO RATE
      0,08 %
      CONCENTRATION OF POWDERS
      28 mg/Nm³
      PERFORMANCE INDEX
      		0.5
      COMBUSTILE
      Logs 25, Logs 33, Logs 50 cm
      MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
      58 cm
      LOAD
      		Front
      SMOKE EXHAUST
      Top or Back
      DIAMETER OF NOZZLE
      150 mm
      DIMENSIONS
      H 768 x W 652 x D 372 mm
      WEIGHT
      162 kg
      DESIGN
      		 Contemporain
      MATTER
      		 Cast Iron
      COMPLETION
      		 Anthracite
      CERTIFICATION
      		EN 13240 – BImSchV2
      GUARANTEE
      		 5 years

       Recommended Heat Shield
      Would you like to see all the

      Why this product?

      8 hour extended burning

      The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

      Adjustable secondary air

        Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

        Clean glass

          The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

          Origine France Garantie (Made in France Guarantee)

          The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

          Post-combustion system

            Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

            Spring loaded door

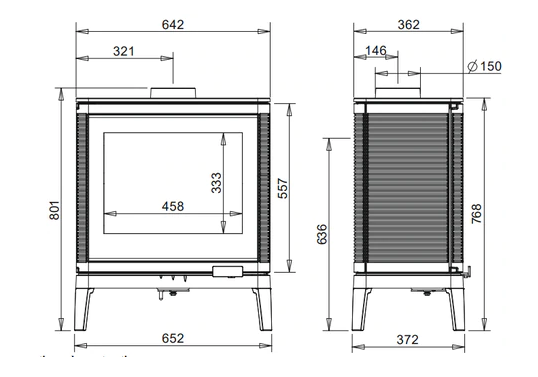

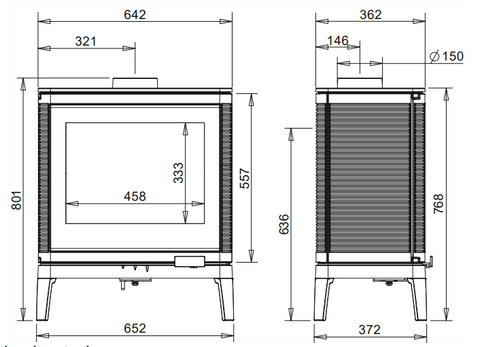

            Technical Elevations




            Optional Accessories

            Rear Heat Shield

              • Color: Charcoal
              • Optional accessory
              • Manufactured from heat-resistant material
              • For use with the Invicta Kazan cast iron wood stove
              • Protects against excessive heat produced by wood stoves
              • Supplies an additional layer of safety during the operation of hearth appliances


              Please Note: Do not connect the stove to any hot air distribution system

              Invicta, French foundry and enamel plant is implanted since 1924 at Donchery in the region Champagne-Ardenne. With 280 employees, these stoves are truly hand made.
