Duravent FasNSeal Special Gas Vent Pipe Standard Tee

Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please reach out to us 541.678.0243

Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.

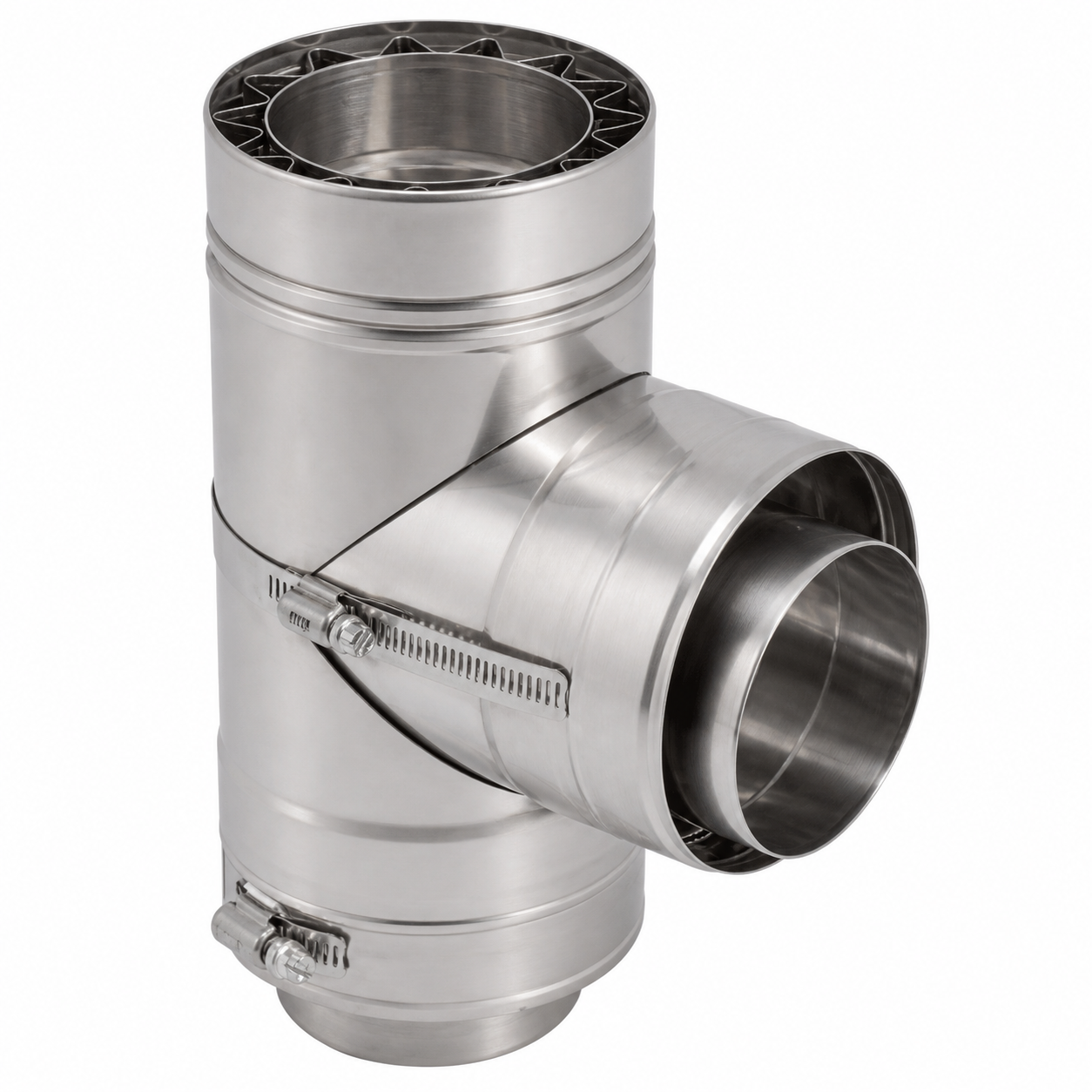

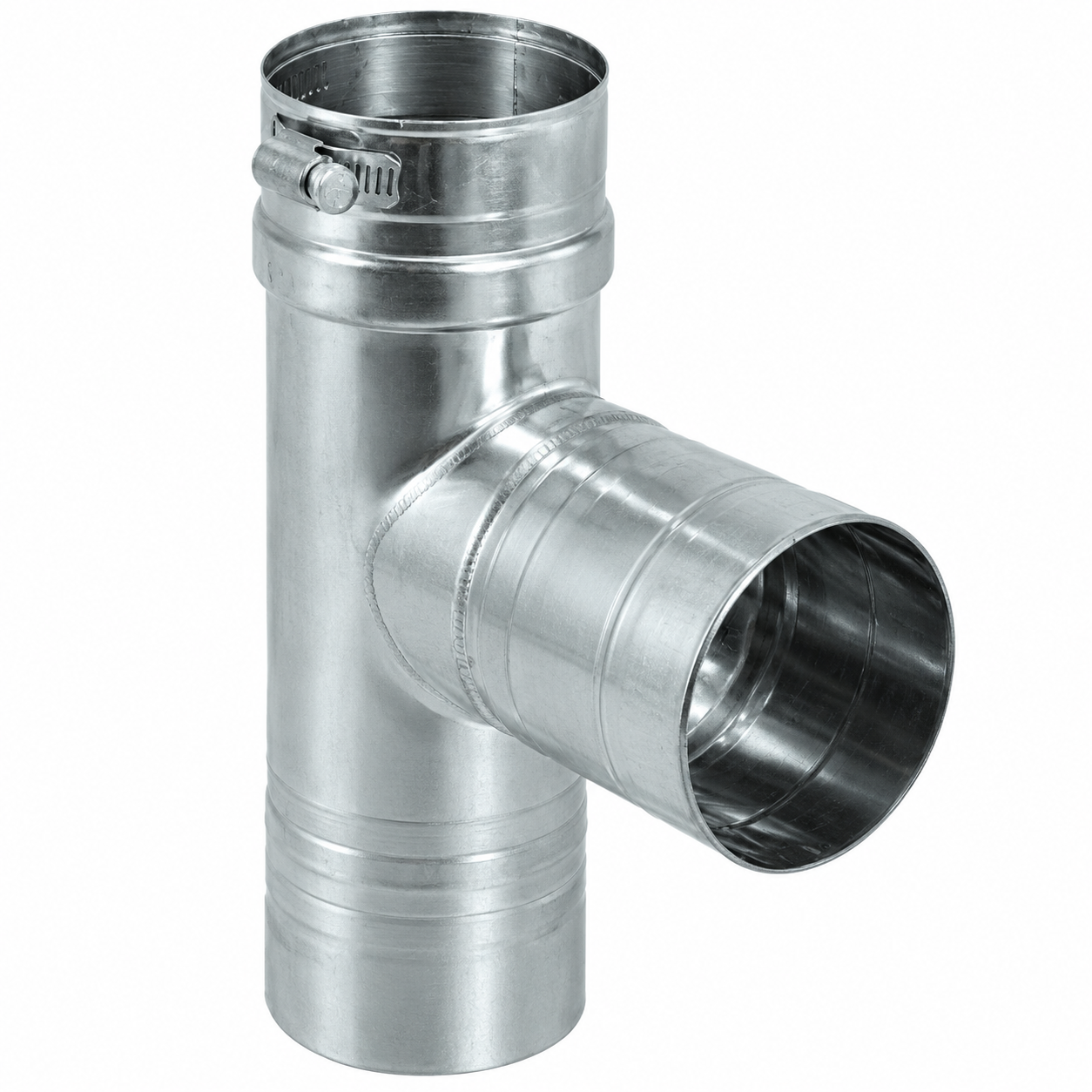

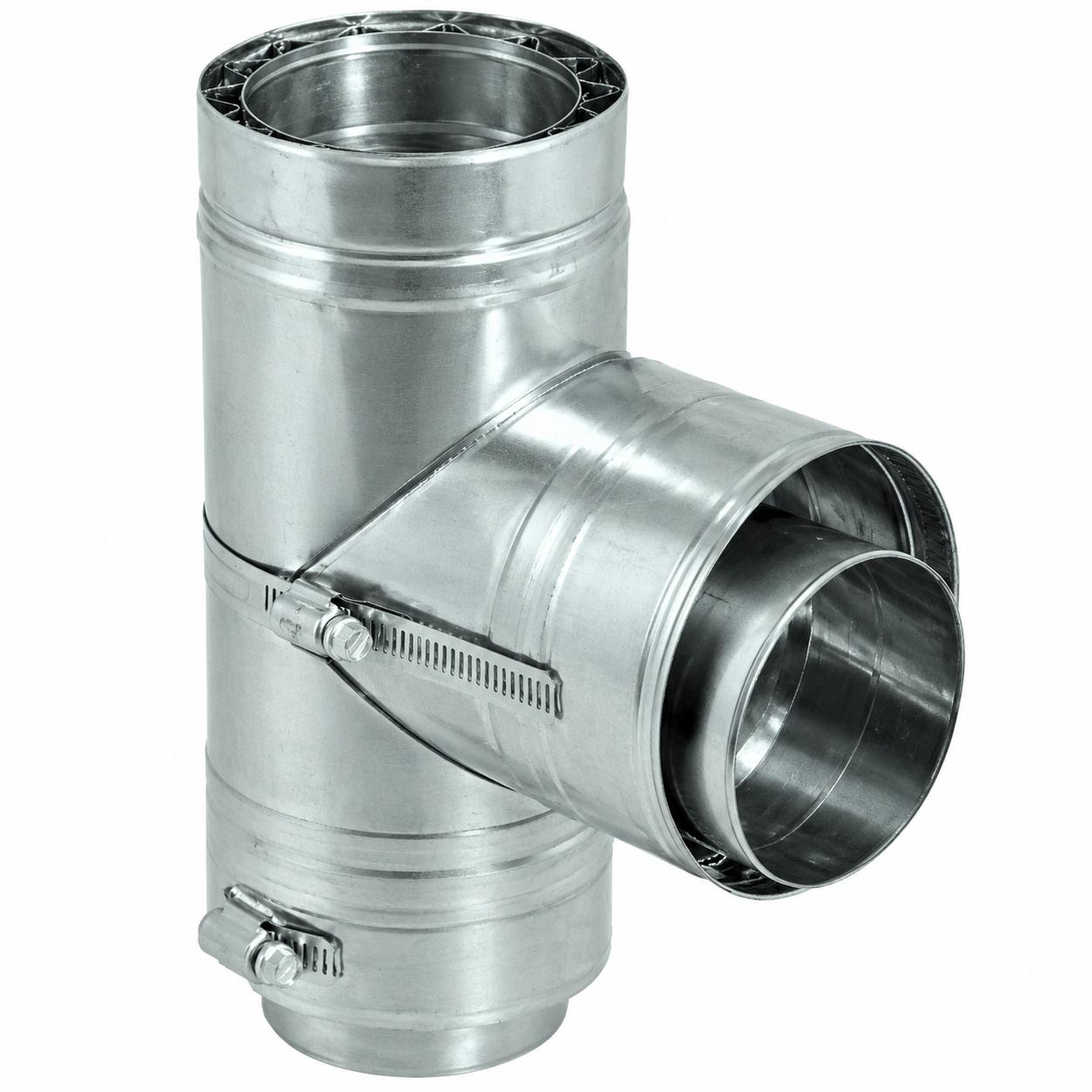

This FasNSeal Standard Tee for Vent Pipe features a patented built in mechanical locking band and triple lipped directional gaskets which allows for ease of installation. Use for a 90° offset, or to combine connections from two or more appliances into a common vent. Can also use as a condensate management point when used in conjunction with drain fitting. All Standard Tees are completely welded.

Available in Varieties of Inner Diameter - 3", 4", 5" 6", 7", 8", 9", 10", 12", 14", 16" and come in a variety of pipe lengths.

AVAILABLE OPTIONS:

This standard tee available in Single wall and double wall - you can select the option you want from the dropdown and if you want need help, Call us and we'll help you put together the full parts list

• Standard FasNSeal: Manufactured primarily with AL29-4C stainless steel inner components, which offer exceptional resistance to the acidic condensates produced by high-efficiency gas-burning appliances
• FasNSeal -316: Upgraded to 316L stainless steel inner wall construction, providing a higher grade of alloy option often specified for specific corrosive environments or unique engineering/code requirements

FEATURES:

• Fuel Types Compatible With: Gas
• UL Listed: Yes

• Single Wall Construction/Double Wall Construction
• Limited Lifetime Warranty

Why Choose FasNSeal?

Every FasNSeal single-wall vent component comes standard with a patented mechanical locking band, triple-lipped directional gaskets, and clean smooth welds positioned 90° from the locking bands - making installation fast, straightforward, and secure without the need for additional tools or hardware.

SPECIFICATIONS

Configuration: Tee

Inner pipe material: AL-29-4C and upgraded 316L Stainless steel

Material: Stainless Steel

Pipe Shape: Round

Vent Construction: Single Wall

Fuel type: Gas

Silicone-Free Construction for Long-Term Reliability

All FasNSeal components that come into direct contact with exhaust gases and condensates are completely silicone-free. Silicone introduces unpredictable adhesion variables and epoxy-based bonds that weaken over time - increasing the risk of leaks and system failure. By eliminating silicone entirely, FasNSeal delivers fully welded seams throughout, ensuring a permanently leak-free product built to perform for the long term.

RESOURECES AND MATERIAL

RELATED DURAENTS LINKS

Check other FasNSeal Product Catalogs -

Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company's research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.

Not sure what you need? Call us and we'll help you put together the full parts list.
