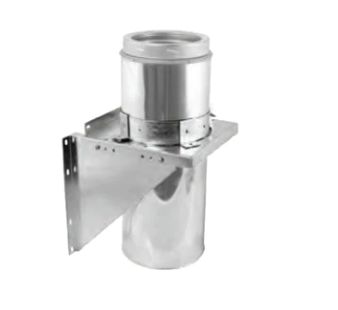

DuraVent DuraTech 7" Diameter 7DT-TSB Galvalume Adjustable Tee Support Bracket
$295.30 USD
-
Free worldwide shipping
-
Free returns
-
Carbon neutral
-
Secure payments
Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please contact us 541.678.0243
Product Note:Allow a 2" clearance to combustibles when installing a DuraTech Chimney.
Use as wall support for chimney system. Use of straps is optional. Supports up to 50’ of DuraTech Chimney without straps, and 70’ of DuraTech Chimney with straps.
Attaches to chimney pipe. Can be installed above or below the Tee. If installed below the Tee, a short section of pipe is required. The adjustable base provides 2” to 6” clearance to the wall.
Adjustable Tee Support Brackets are available in Galvalume or
Product Details and Dimensions
| Size | 7” Diameter GA Adjustable Tee Support |
| A | 9” |
| B | 12” |
| C | 13” |
| D | 13 3⁄4” |
Specifications:
- Diameter: 7" (optional 6 or 8 also)
- Construction material: Stainless steel
- Clearance: 2"
- Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
Manufacturer: M&G Duravent Product Collection:DVLProduct:ElbowsStyle:Double WallType:Replacement PartMaterial:SteelMpn #8790Weight4.90 lbs.
