      Dorako Linea Two Sided Glass Wood Burning Fireplace Insert

      $4,161.95 USD
      Models

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments

      Dorako Linea Two Sided Glass Wood Burning Fireplace Insert - Modern Indoor See Through Fireplace

      High energy efficiency wood burning wall built-in see through Fireplace - Double Combustion system, Sliding Door Opening.

      FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE

      FEATURES:

      • Energy Efficiency: A
      • Fulfilling the Ecodesign requirements
      • For low energy and passive houses
      • Door opening: on side

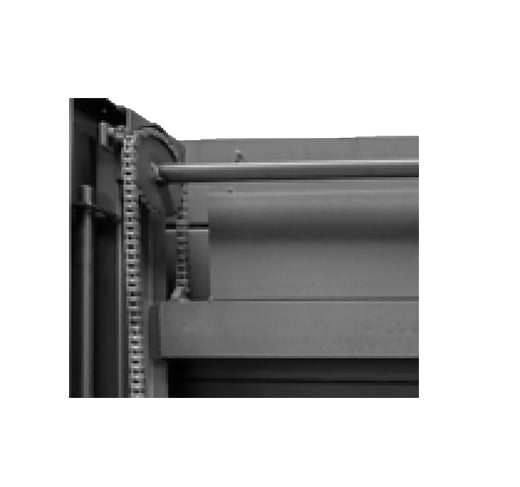

      • Door opening: sliding
      • Strength of materials: High-grade steel, Ceramic lined, Ceramic glass

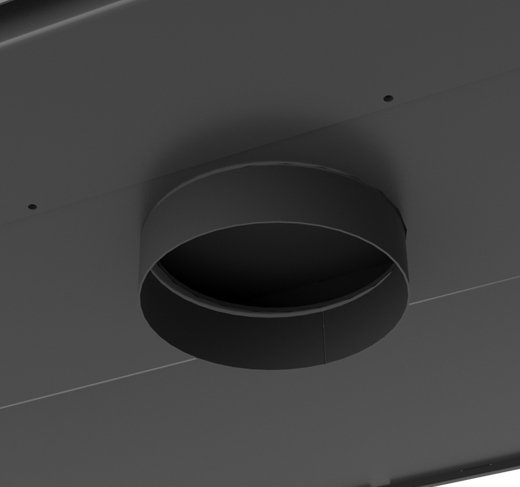

      • Flue pipe diameter: 9/9.4"
      • Maximum log length: 85 cm
      • Outside air inlet: 4.84"

      NOTE:  We do custom chimney pipe build for your fireplace Free of Charge, everything is tailored so your installation is safe, code-compliant.

      TWO ROOMS, ONE FIRE, ENDLESS WARMTH

      The Dorako Linea design is a high-end double-sided wood burning fireplace crafted to serve as a bold architectural centerpiece while providing warmth to two connected areas at once. With its expansive panoramic flame view, sleek frameless silhouette, and cutting-edge combustion engineering, it blends outstanding functionality with the refined craftsmanship of European design.

      Perfectly suited for contemporary homes, upscale interiors, and open-concept layouts, this fireplace offers powerful heat output, efficient clean burning, and exceptional energy performance. Positioned between a living room and dining area, or used to divide indoor entertaining spaces, the Linea DF fireplace brings warmth, atmosphere, and dramatic visual appeal to both sides simultaneously.

      Built in Europe from top-grade steel and high-temperature ceramic liners, this fireplace is engineered to deliver dependable performance for years to come.

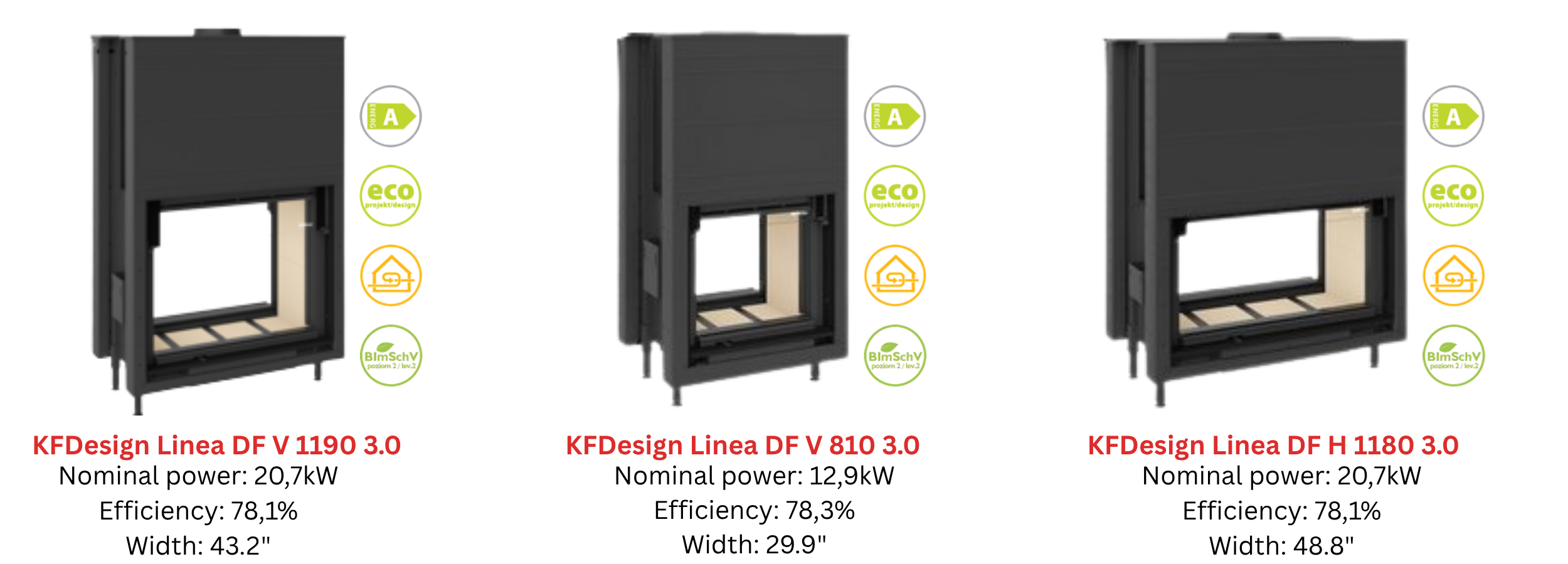

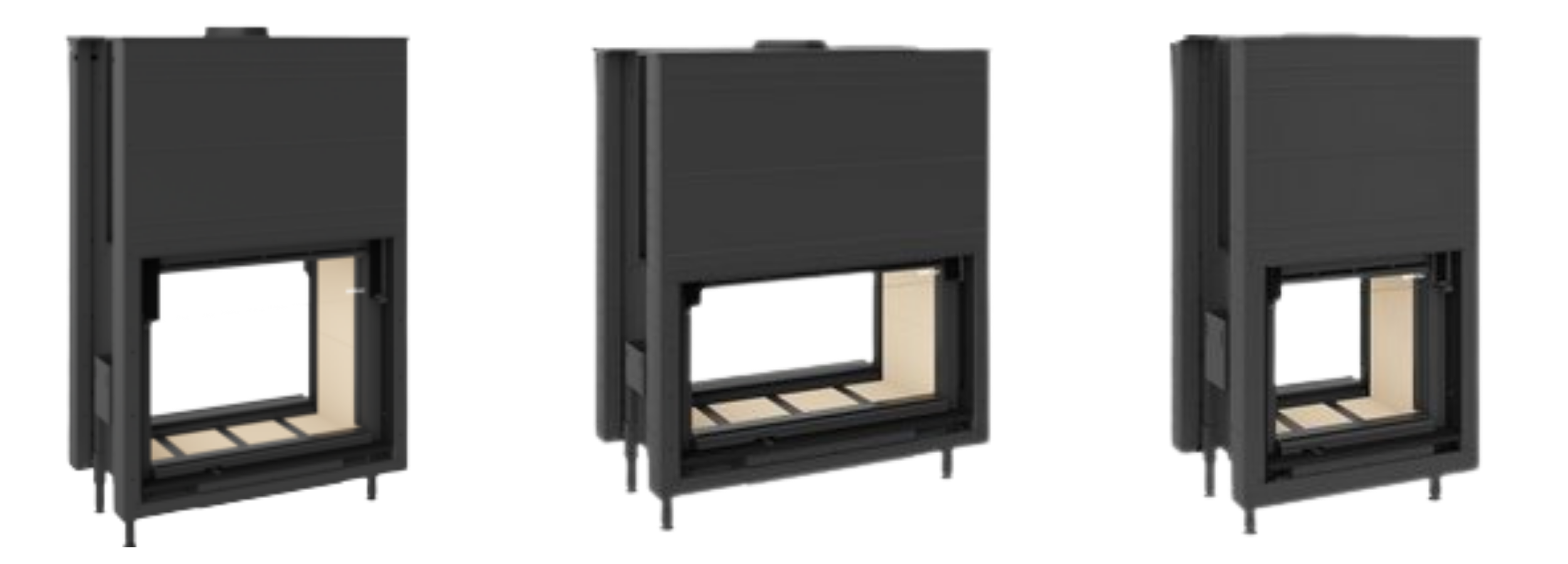

      We have three Models Available, you can select and choose out of the three models:

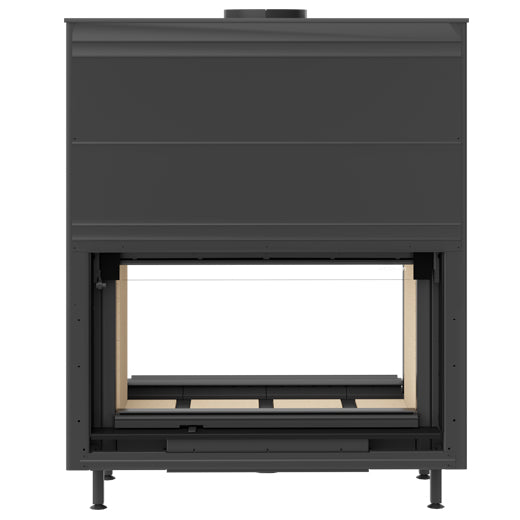

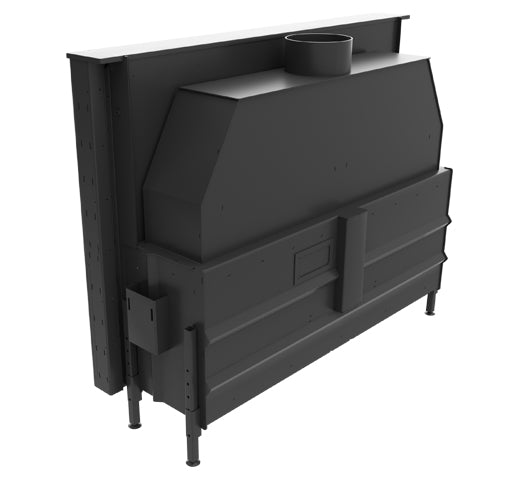

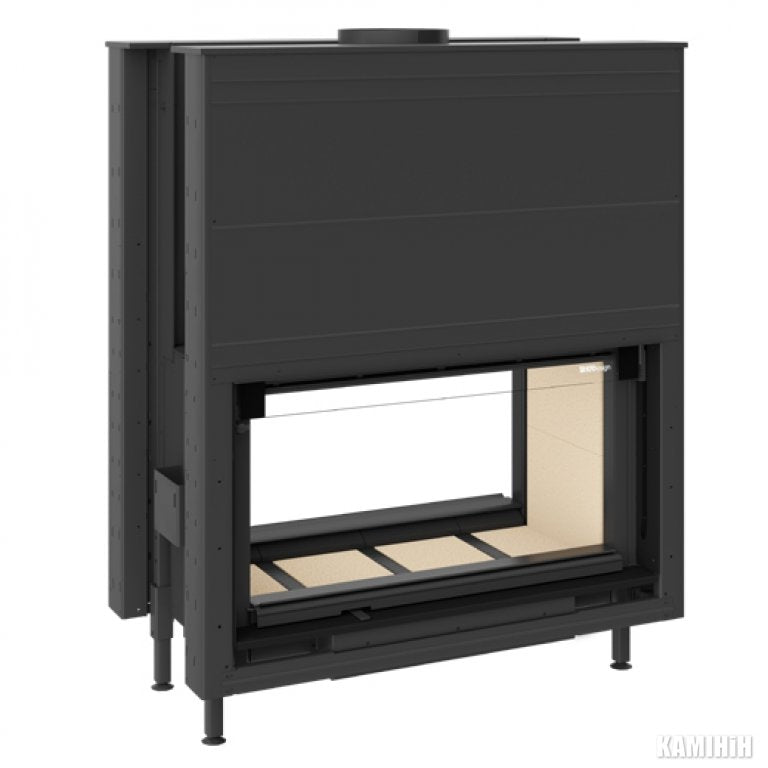

      KFDesign Linea DF H 1180 3.0

      • Nominal power: 20,6kW
      • Efficiency: 78,1%
      • Width: 48.8"

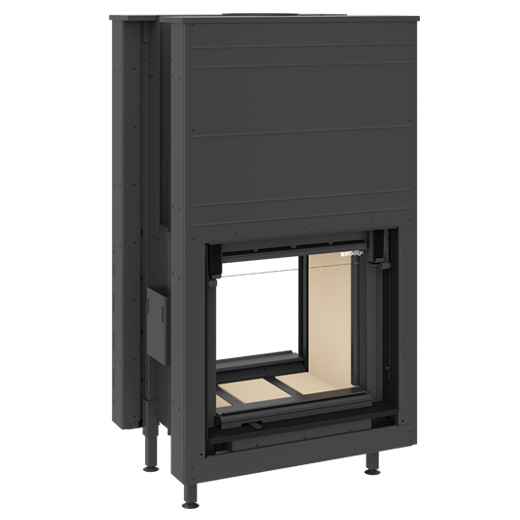

      KFDesign Linea DF V 810 3.0

      • Nominal power: 12,9kW
      • Efficiency: 78,3%
      • Width: 29.9"

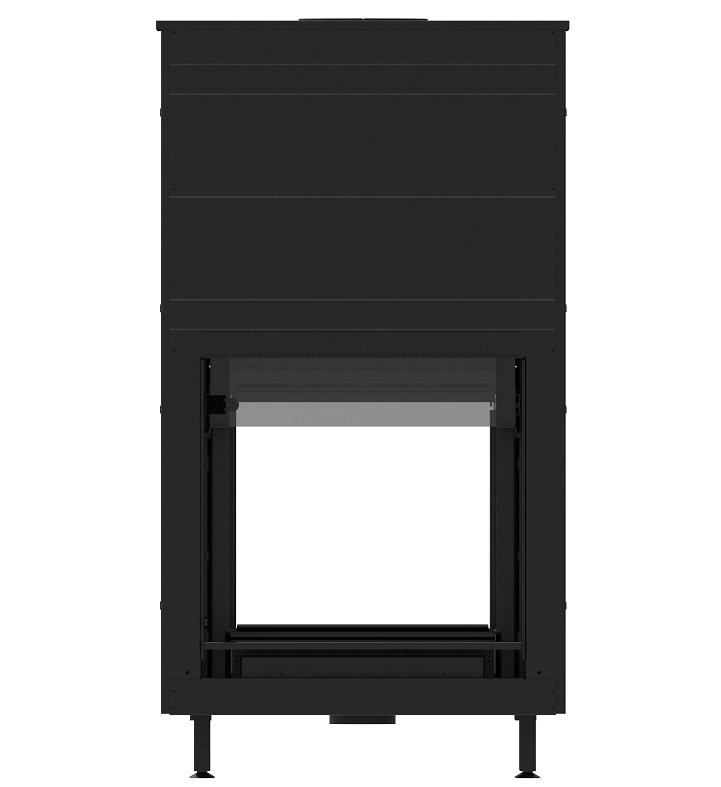

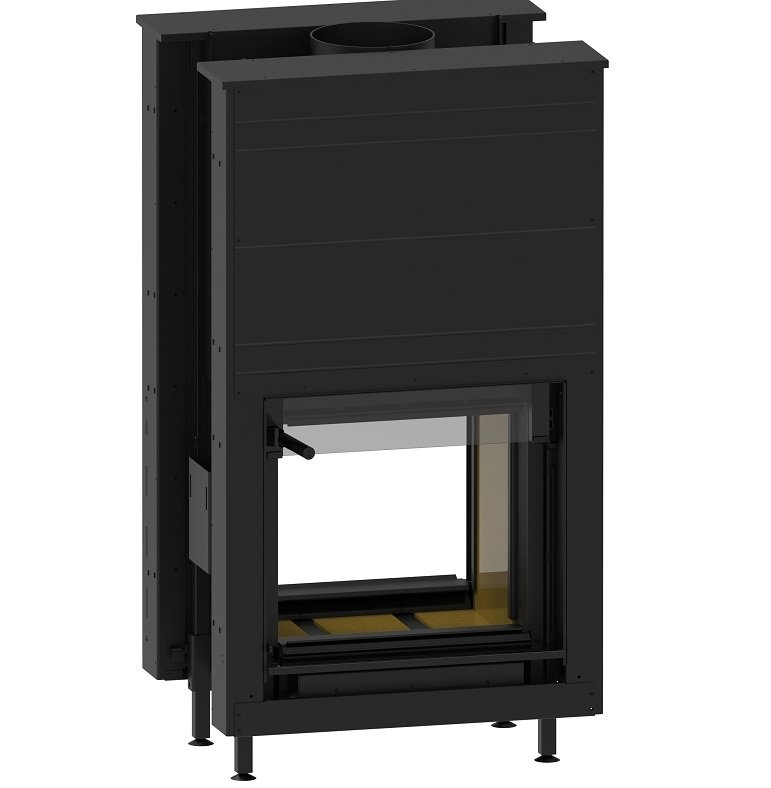

      KFDesign Linea DF V 1190 3.0

      • Nominal power: 20,7kW
      • Efficiency: 78,1%
      • Width: 42.9"

      TECHNICAL SPECIFICATION

      ModelDF H 1180 2.0 DF V 810 3.0 DF V 1190 2.0
      Energy ClassAA A
      Nominal power20,6 [kW]12,9 [kW]20,7 [kW]
      heating power range11,0 - 22,0 [kW]7,0 - 14,0 [kW]11,0 - 22,0 [kW]
      energy efficiency index104,2 [EEI]104,5 [EEI]104,2 [EEI]
      Energy efficiency78.1%78,3%78,1%
      CO emission at 13% O21072 [mg/Nm3]1182 [mg/Nm3]1138 [mg/Nm3]
      dust emission at 13% O227 [mg/Nm3]29 [mg/Nm3]28 [mg/Nm3]
      OGC at 13% O287 [mg/Nm3]90 [mg/Nm3]87 [mg/Nm3]
      NOX emission at 13% O243 [mg/Nm3]44 [mg/Nm3]65 [mg/Nm3]
      flue gas mass flow19,2 [g/s]13,3 [g/s]19,7 [g/s]
      smoke temperature at smoke outlet278 [°C]246 [°C]277 [°C]
      minimum chimney draft12 [Pa]12 [Pa]12 [Pa]

      WHY CHOOSE THE DORAKO LINEA DF FIREPLACE INSERT

      Designed for homeowners who appreciate both style and performance, this fireplace offers numerous benefits:

      • Large double-sided panoramic glass
      • Beautiful flame view from two rooms
      • Modern frameless installation
      • High-efficiency wood combustion
      • Clean-burning technology
      • Excellent heat retention
      • Premium European engineering
      • Durable steel construction
      • High-temperature ceramic combustion chamber
      • Easy air control system
      • Suitable for contemporary architectural homes
      • Compatible with professional insulated flue systems

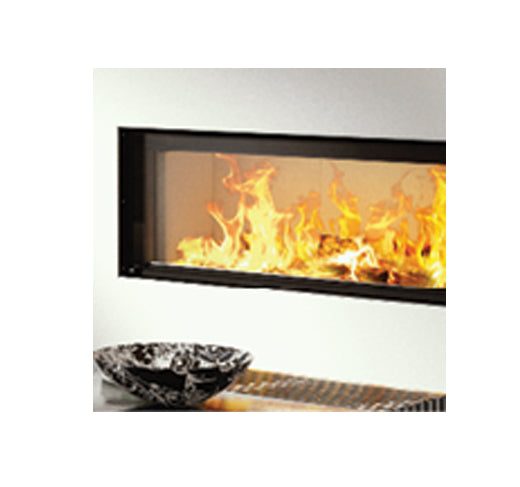

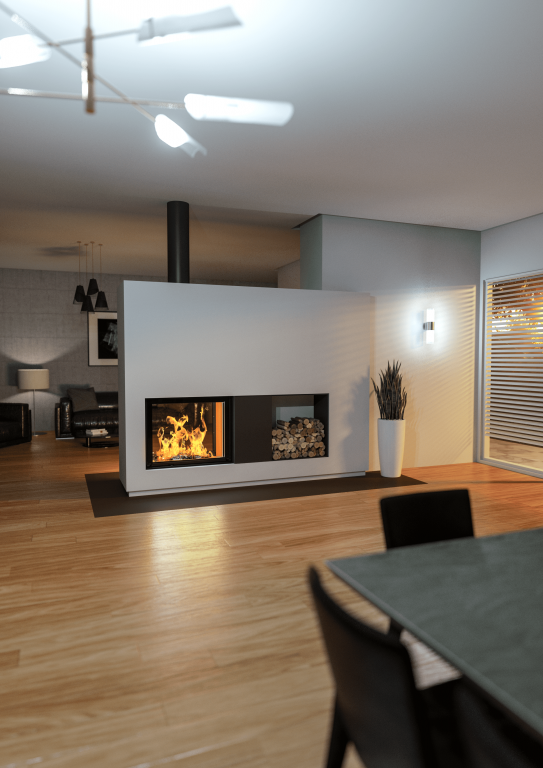

      One insert but two fireplaces and in extremely different styles at that. This is a double-sided fireplace insert. The flame can be admired in two rooms simultaneously. In this way the image of the flame becomes deeper with the view of the other room showing through the curtain of fire.

      You can also Select Firebrick elements available in following colors:

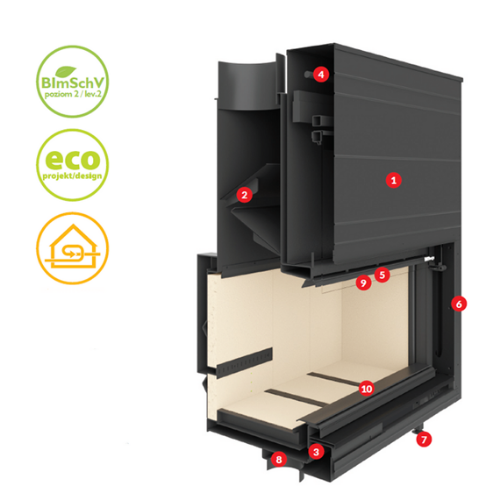

      EQUIPMENT AND ADVANTAGES

      1. RELIABILITY AND DURABILITY
      A solid construction made of cast iron and steel guarantees safety and durability for many years. Handmade in Poland to order.
      2. EFFICIENCY AND ECOLOGY
      Advanced dual combustion system that guarantees high efficiency and low emission of pollutants. 82.5% efficiency rating.
      3. MORE EFFICIENCY

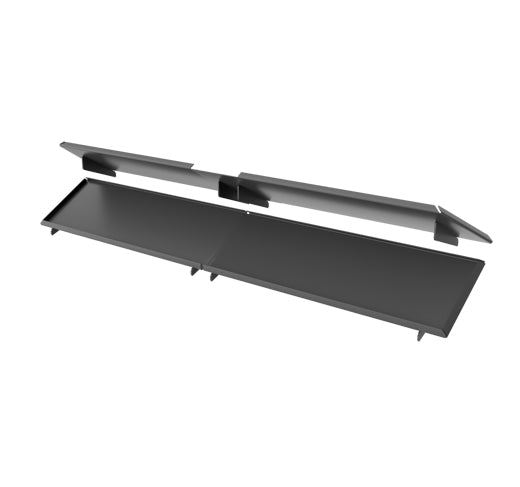

      The deflector extends the flue gas circulation path in the furnace, increasing heating efficiency and making combustion more ecological.
      4. TIGHTNESS, AESTHETICS, AND COMFORT

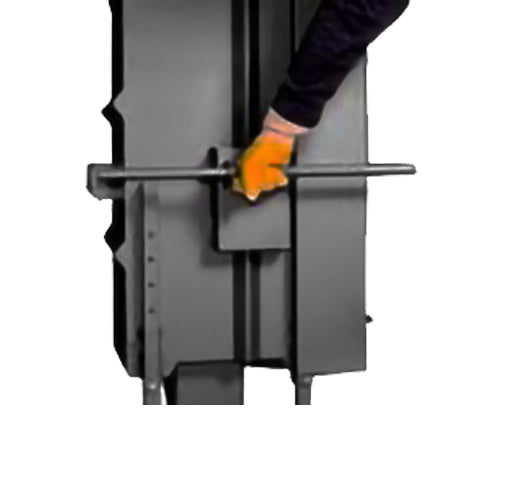

      The door is locked with a lock, ensuring tight closure. Includes a "cold handle" or protective glove for safe operation.
      5. SAFETY AND A BEAUTIFUL VIEW OF THE FIRE
      Glass panes made of ceramics resistant to temperatures up to 800°C and thermal shocks. Clean glass system keeps windows clear for a very long time.
      6. EASY MAINTENANCE
      Removable parts of the hearth make maintenance easy without completely dismantling the hearth.
      7. COMFORT OF OPERATION
      A removable ash pan allows quick and easy ash removal.
      8. POWER ADJUSTMENT
      Smooth adjustment of the air intake allows you to control the power of the device.

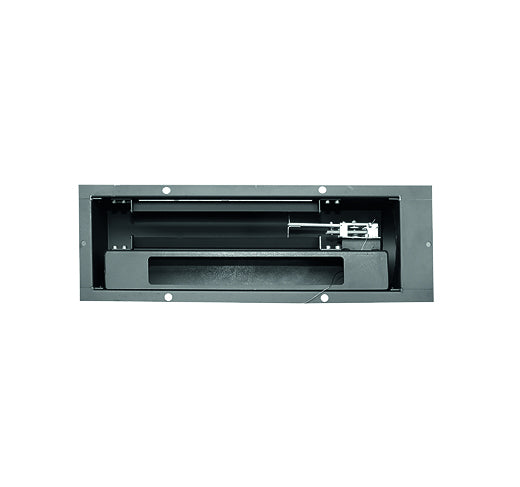

      9. DIRECT AIR INTAKE
      The direct air inlet enables installation in houses equipped with mechanical ventilation — recuperation.

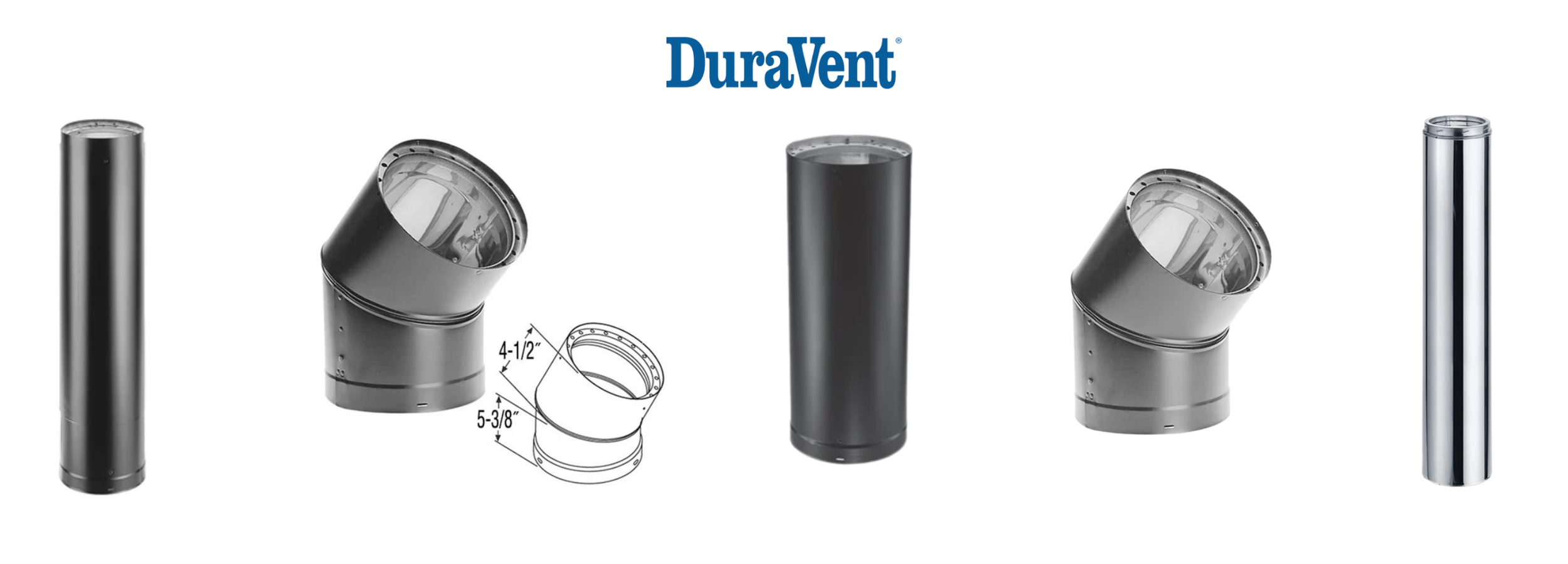

      We always recommended Specific Chimney pipes for the Installation of KFD Linea DF Fireplace Insert -  collections for this high-efficiency wood stove or you can contact Madi for consultation - 541.678.0243

      Questions about chimney pipe or flue?

      ABOUT KFD

      KFD Sp. is a Polish company with 100% family capital, established in 1996. You may have heard of Vermont Castings — that is a KFD brand as well.

      Also from KFD & Dorako — Explore the Full Collection

      Love the KFDesign Linea double sided glass but want to explore other KFD handmade options?

      •  — 15kW, 80% efficiency, stunning vertical cylindrical design. The most sculptural stove in the KFD lineup.
      • - Most loved Dorako, 11.5KW, Bench included
      •  — the larger version of this stove with a wider bench and Ecodesign certification.
      •  — bold cube design, 15kW, A+ rated. Great for cabins and large living spaces.

      Decorative Units Only

      DORAKO LINEA DOWNLOADS

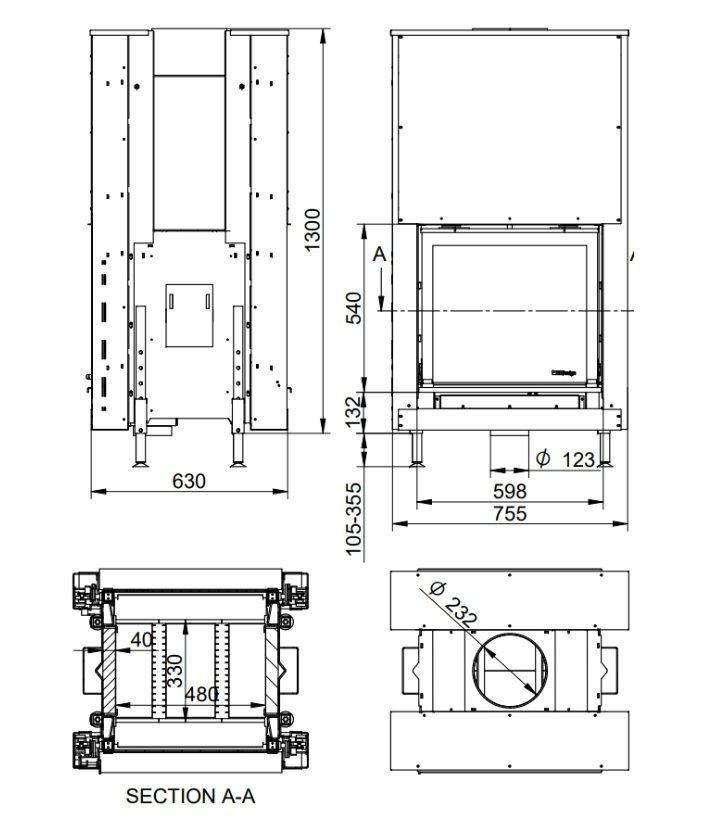

      Dimensional Card Dorako Linea DF V 810

      Dimensional Card Dorako Linea DF V 1190

      Need a custom fireplace, or you want us to help you choose a perfect fireplace or Stove for your Home? we can have just about anything you think of designed and built. contact us 541.678.0243

      We will love to answer your questions to help you make best decision for your fireplace:

      • Will this be a primary heat source or just supplemental heating?
      • Will this fit my existing space, wall, or chimney opening?
      • What is the power output range, and does it match my space's heating needs?
      • What are the venting or flue requirements, and is my home's setup compatible?
      • How efficient is it at converting fuel into heat?
      • And many others
