Dorako ECO Max 7 Left /Right Corner Wood Burning Fireplace - Scandinavian Modern Wall-Insert Stove
This Corner Wood Fireplace is made to order, choose your corner that you want to open right or left and select the Forms you want Basic or Standard - Original Wrap Fireplace
If you have Any Questions on any of our products or you need Help with your Purchase, please feel free to call or text Madi 541.678.0243
The KFD In-Wall Built in three sided fireplace is one of the most efficient (82.5% Efficiency) Cast Iron Stoves you can buy. Hand Made in Poland by KFD and made to order. Smokey Mountain will be being helping with any other questions you may have.
Metal stand sold separately so you can enclose this fireplace what the surround of your choice, brick, stone, steel you choose your hearth materials. this frame allows you to design it.
TECHNICAL DATA:
- Energy efficiency class: A+
- Direct thermal power (nominal power): 11.5 kW
- Heating power range: 7.0 - 16.0 kW
- Energy efficiency index: 110.6 EEI
- Energy efficiency at nominal heat output: 82.5%
- Seasonal energy efficiency for space heating: 73.5%
- CO emissions at 13% O2: 0.09 [%], 1162 mg/Nm3
- Dust emission at 13% O2: 19 mg/Nm3
- OGC at 13% O2: 51 mg/Nm3- NOX emissions at 13% O2: 145 mg/Nm3
- Mass flow of combustion gases: 9.75 g/s
- Average smoke temperature at smoke outlet: 235°C
- Minimum chimney draft: 36"

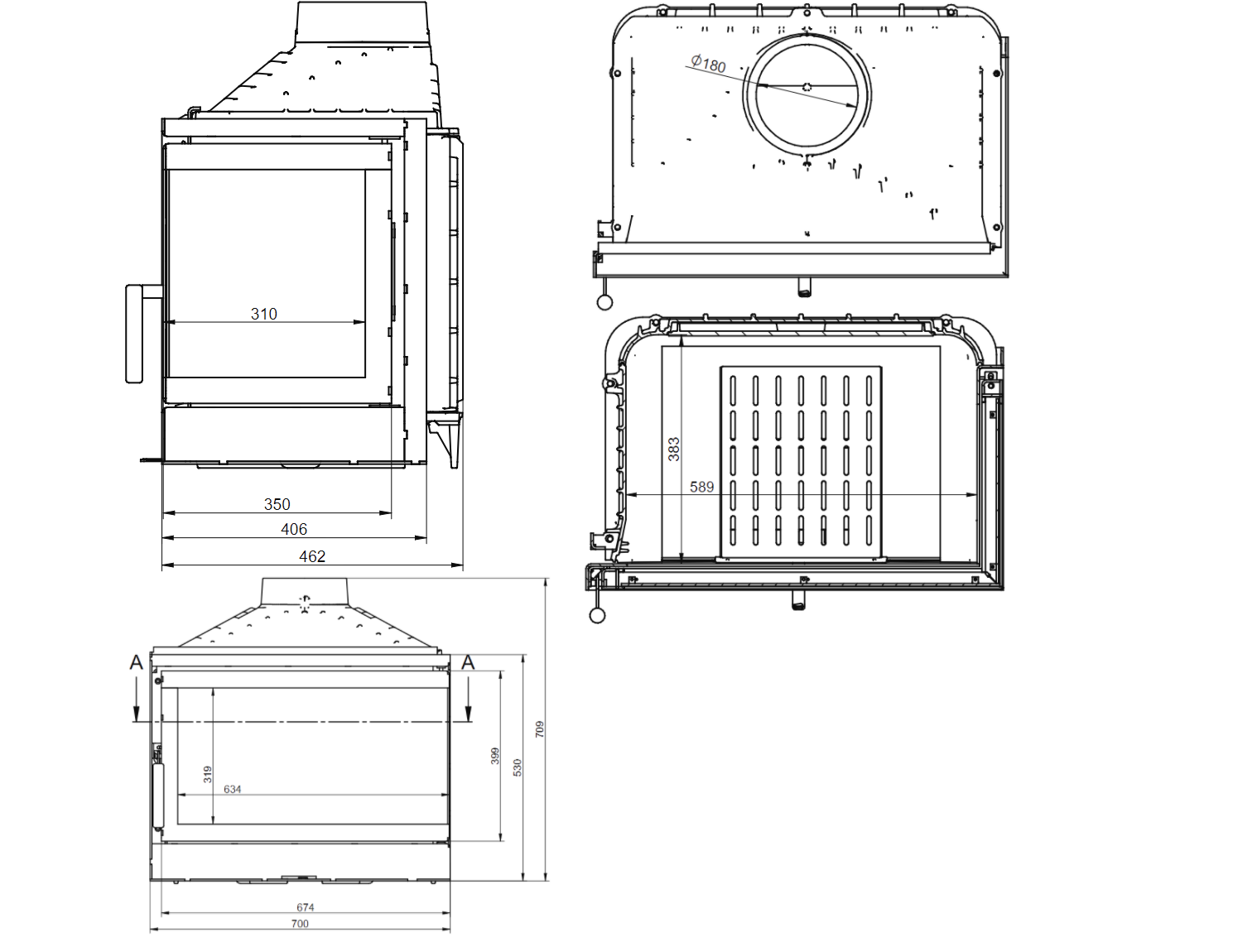

DIMENSIONS AND WEIGHT:
- Total dimensions (HxWxD): 27.9″ × 27.6″ × 18.3″ (BASIC)
- Overall dimension (H x W x D): 28.4″ × 28.4″ × 18.1″ (STANDARD)
- Front dimensions (HxWxD): 27.6″ × 20.9″(BASIC)
- Front dimensions (H x W x D): 28.4″ × 17.5″ (STANDARD)
- Side panel dimensions (HxWxD): 16.0″ × 20.9″ (BASIC)
- Side panel dimensions (H x W x D): 15.2″ × 17.5″ (STANDARD)
- Front glass dimensions (HxWxD): 25.0″ × 13.5″ (BASIC)
- Front glass dimensions (H x W x D): 25.6″ × 13.5″ (STANDARD)
- Side window dimensions (HxWxD): 12.2″ × 13.5″ (BASIC)
- Side window dimensions (H x W x D): 12.2″ × 13.5″ (STANDARD)
- Maximum log length: 50 cm
- Diameter of the internal/external smoke duct: 7.1″ / 7.9″
- Air inlet diameter: 3.9″
- Weight: 115 kg
CERTIFICATES:
- EN 13240 - Number of test reports: 9/18 - LG
- Declaration of ecodesign requirements: YES
- BImSchV lev. 2: YES
- 15a LPP: YES
ADDITIONAL INFROMATIONS
Specific precautions: Must be installed, used, and maintained in accordance with the installation and operation manual
- For continuous combustion: YES
- Fuel type: Wood logs with moisture content ≤ 20%
- Minimum cross-section of the supply air network: 700 cm3
- Minimum cross-selection of outgoing air networks: 980 cm3
- Ashtray: YES
- Device suitable for low energy and passive houses: NO
- Door opening on the side
- Possibility of burning with an open door: NO
- Warranty: 5 years
EQUIPMENT AND ADVANTAGE
1. RELIABILITY AND DURABILITY
A solid construction made of cast iron and steel guarantees safety and durability for many years. Hand Made in Poland to Order your KFD Ariana is made to last with the finest steel construction.
2. EFFICIENCY AND ECOLOGY
Advanced dual combustion system that guarantees high efficiency and low emission of pollutants. log lengths are ideal at 12" and recommended to be 2" in diameter. 82% Efficiency rating
3. MORE EFFICIENCY
The deflector extends the flue gas circulation path in the furnace. Thanks to this, the heating efficiency increases, and the combustion itself become even more ecological.
4. TIGHTNESS, AESTHETICS, AND COMFORT
The door is locked with a lock, ensuring tight closure. The set includes (depending on the model) a "cold hand" or a protective glove, ensuring safe operation.
5. SAFETY AND A BEAUTIFUL VIEW OF THE FIRE
Glass panes made of ceramics resistant to temperatures up to 800 degrees Celsius and thermal shocks. Thanks to the "clean glass" system with an air curtain, the windows stay clean for a very long time.
6. EASY MAINTENANCE
Removable parts of the hearth make it easy to carry out maintenance work without having to completely dismantle the hearth.
7. COMFORT OF OPERATION
A removable ash pan allows you to remove ash quickly and easily.

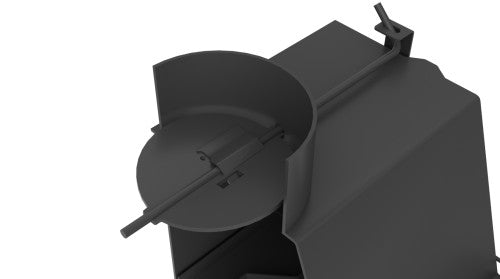

8. POWER ADJUSTMENT
Smooth adjustment of the air intake allows you to control the power of the device.
9. DIRECT AIR INTAKE
The direct air inlet to the furnace enables installation of the device in houses equipped with mechanical ventilation - recuperation.
for the Left / Right Corner Dorako Handmade Fireplace
Need a custom fireplace, we can have just about anything you think of designed and built. contact us 541.678.0243
