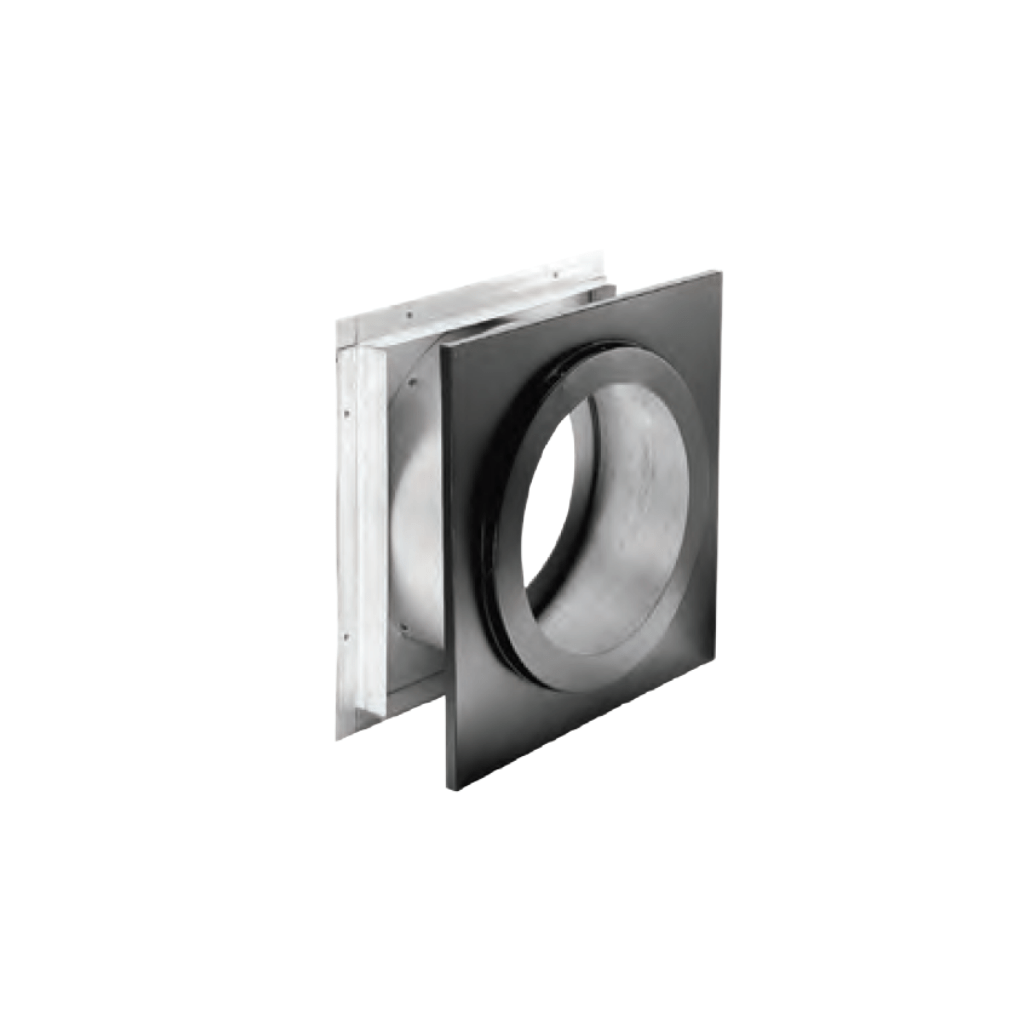

7DT-WT DuraVent DuraTech 7" Diameter Wall Thimble

Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please contact us 541.678.0243

Adjusts from a minimum of 5 1/2” to a maximum of 9 1/2” wall thickness, and fits between standard wall studs. To accommodate thicker walls, the telescoping pieces can be extended up to 16” with a field-fabricated extension installed.

Interior trim ring painted black. Must be installed with DuraTech chimney pipe horizontally through the wall and extend 6” into the room beyond the interior wall.

6” and 8” stainless steel exterior trim available. - not dimensions are specific per trim

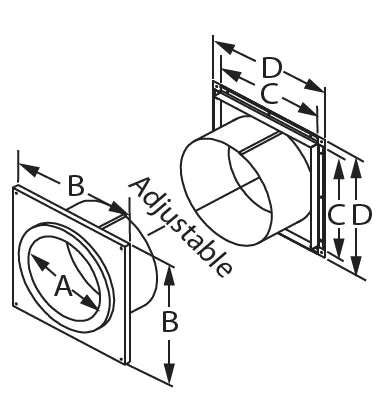

Product Details and Dimensions

When you go int the wall you will use this  this will be switching to DT from the DVL so you also need t

Applications

DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
